3.6 MIFA-U13 ETU
3.6.1 Description
The MIFA-U13 ETU provides additional memory and
processing power to support UCD.
In the Xen Master, the MIFA-U13 ETU can also support the
ACD/MIS facility by installing the KMA(XXX)UA Unit onto
this ETU.
3.6.2 Installation
One MIFA-U13 ETU can be installed in the Xen system.
In the Xen Master, the MIFA-U13 ETU can be installed in
the ISA slot, first Interface slot (S1), or second Interface
slot (S2) of the basic KSU. Note however that the MIFA-
U13 ETU must be installed in the ISA slot if the MIS
terminal is to be connected to COM4. The MIFA-U13 ETU
cannot be installed in an Expansion KSU.
In the Xen Axis, the MIFA-U13 ETU must be installed in
the ISA slot S2.

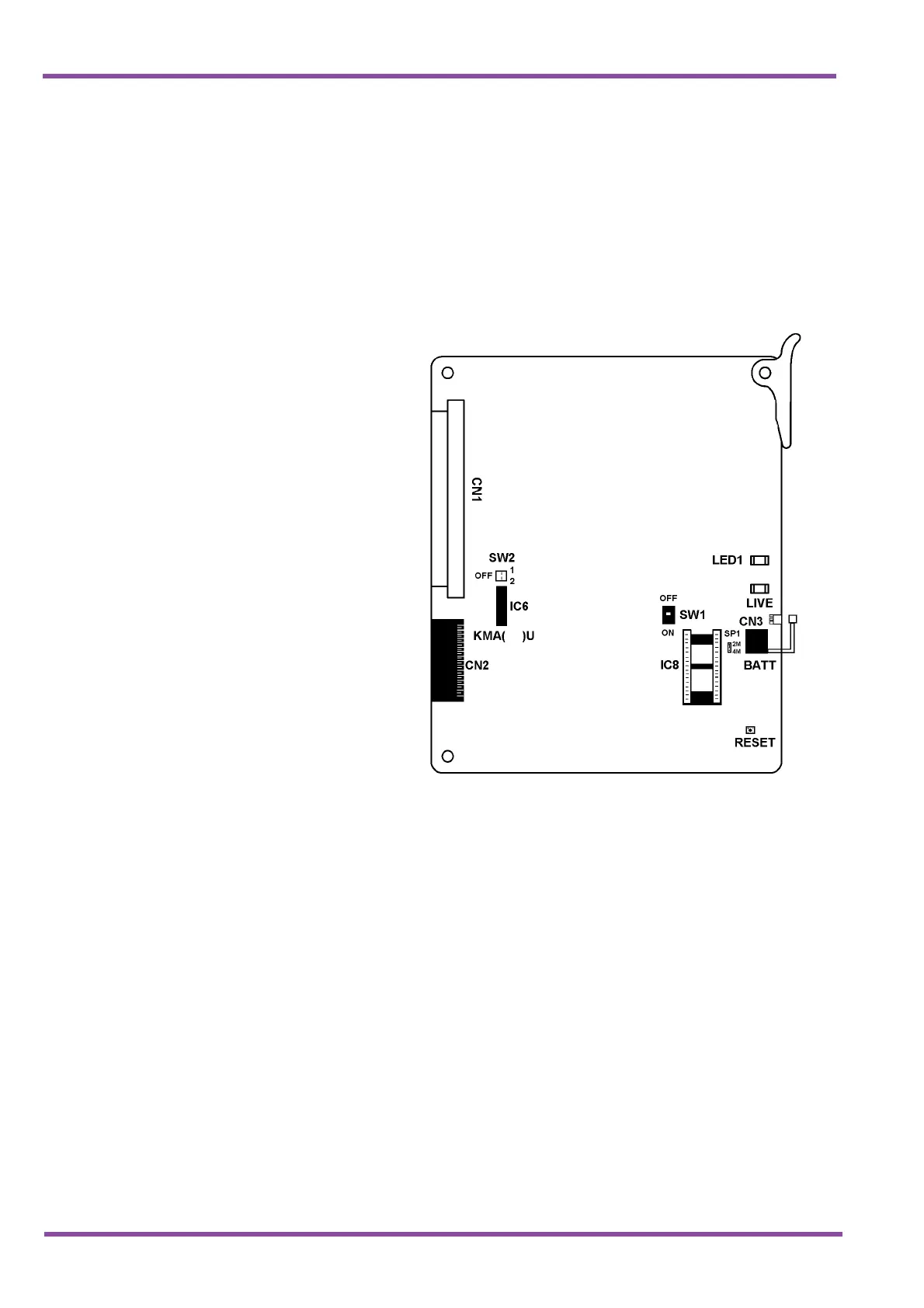

Figure 5-14 MIFA-U13 ETU
