NEC Australia Pty Ltd Xen Master & Xen Axis
5 - 170 Installing Electronic Telephone Units
A6-324000-642-01 – Release 4.0
May 2001
5.6.2 Installation
✆ A maximum of 4 FMS(
4
)-U13 ETUs can be installed
in the Xen Master system, 3 per KSU in slots S1~S8
of the first, second or third KSU, up to a maximum of
16 Voice Mail ports.
✆ A maximum of 4 FMS(
4
)-U13 ETUs can be installed
in the Xen Axis system, in slots S2~S7, up to a
maximum of 16 Voice Mail ports.
5.6.3 Switch Settings
The following table indicates the switch settings for the
FMS(2/4)-U13 ETU.

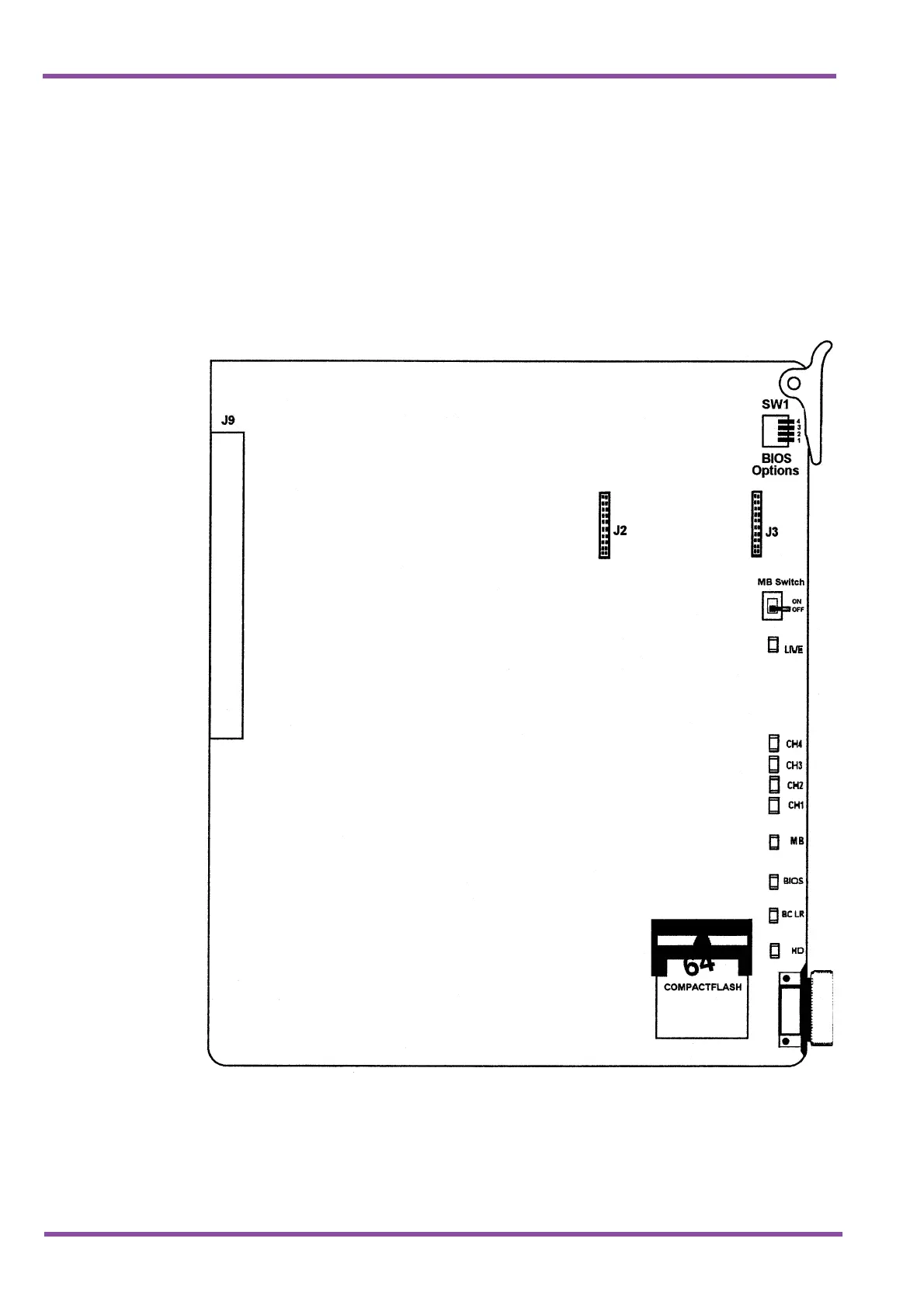

Figure 5-36 FMS( )-U13 ETU
To Next Page
