May 2001
System Hardware Manual 7 - 235
A6-324000-642-01 – Release 4.0
May 2001
9. Push up on the Multiline Terminal and lock the top
tabs on the base cover into the tab slots on the base
of the Multiline Terminal. Turn terminal slightly
clockwise to interface with base cover. Figure 7-67
Attaching the Top Tabs of the Multiline Terminal to the
Base Plate shows how the Multiline Terminal is
attached.
10. When properly installed, the wall-mounted Multiline
Terminal looks similar to the one shown in Figure 7-
68 Installed Wall Mount Unit.
# Do not adjust the tilt panel LCD after the Multiline
Terminal is mounted on the wall.

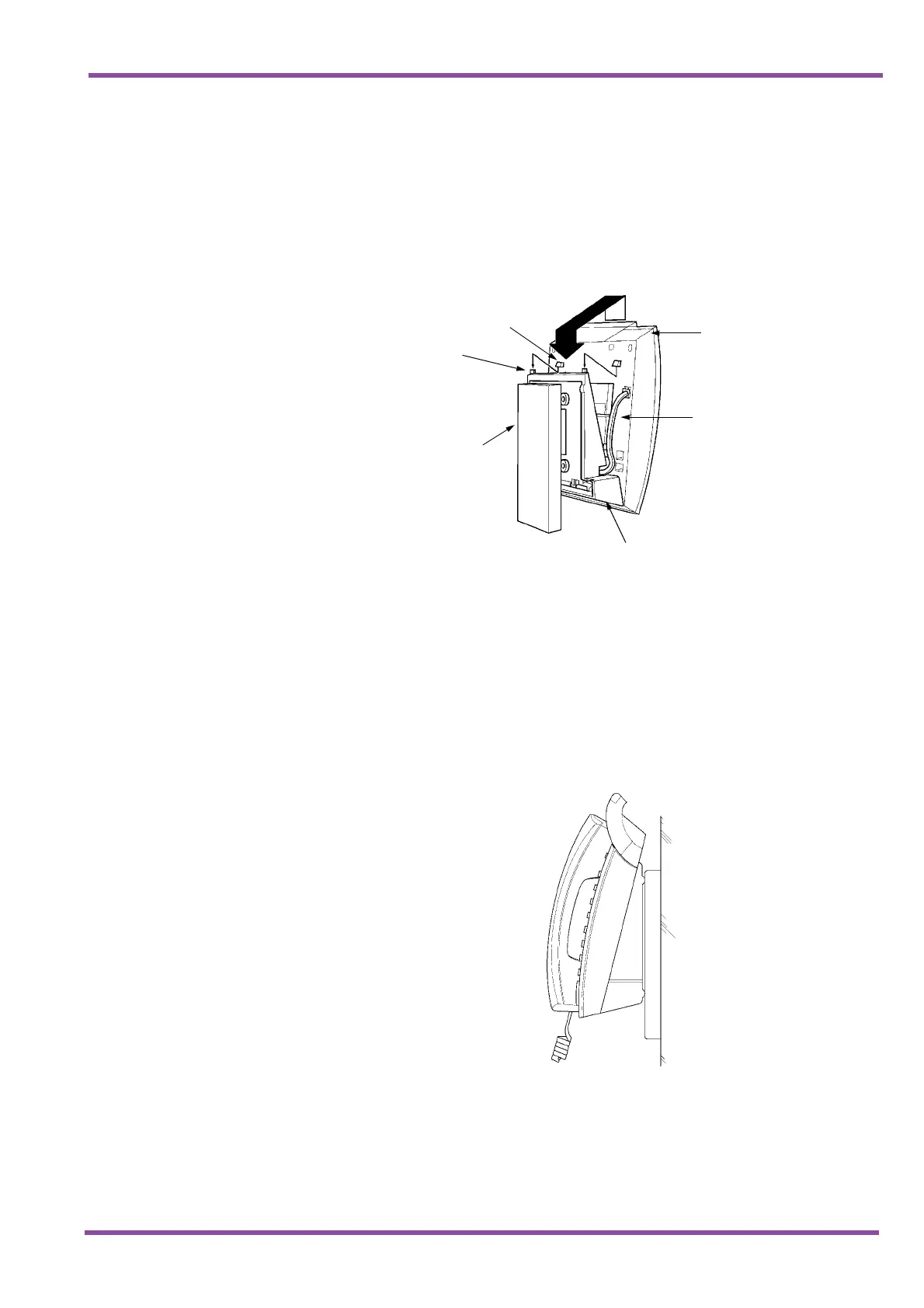

Figure 7-67 Attaching the Top Tabs of the Multiline Terminal to the Base Plate
Figure 7-68 Installed Wall Mount Unit
Wall
Wall Mount
Unit
Tab Slots
Multiline
Terminal
Tabs
Line Cord
To Next Page
