NEC Xen Master - Figure 7-28 Opening the Base of the DTU-Type MLT; Figure 7-29 Installing the CTU(S)-UA Unit

NEC Australia Pty Ltd Xen Master & Xen Axis
7 - 212 Installing Optional Equipment
A6-324000-642-01 – Release 4.0 May 2001
Pull out Line Cord’s modular plug from
Phone’s modular jack.
3. PLug the CTU(S) Unit’s connector into
DTU-Type MLT’s Connector #1.

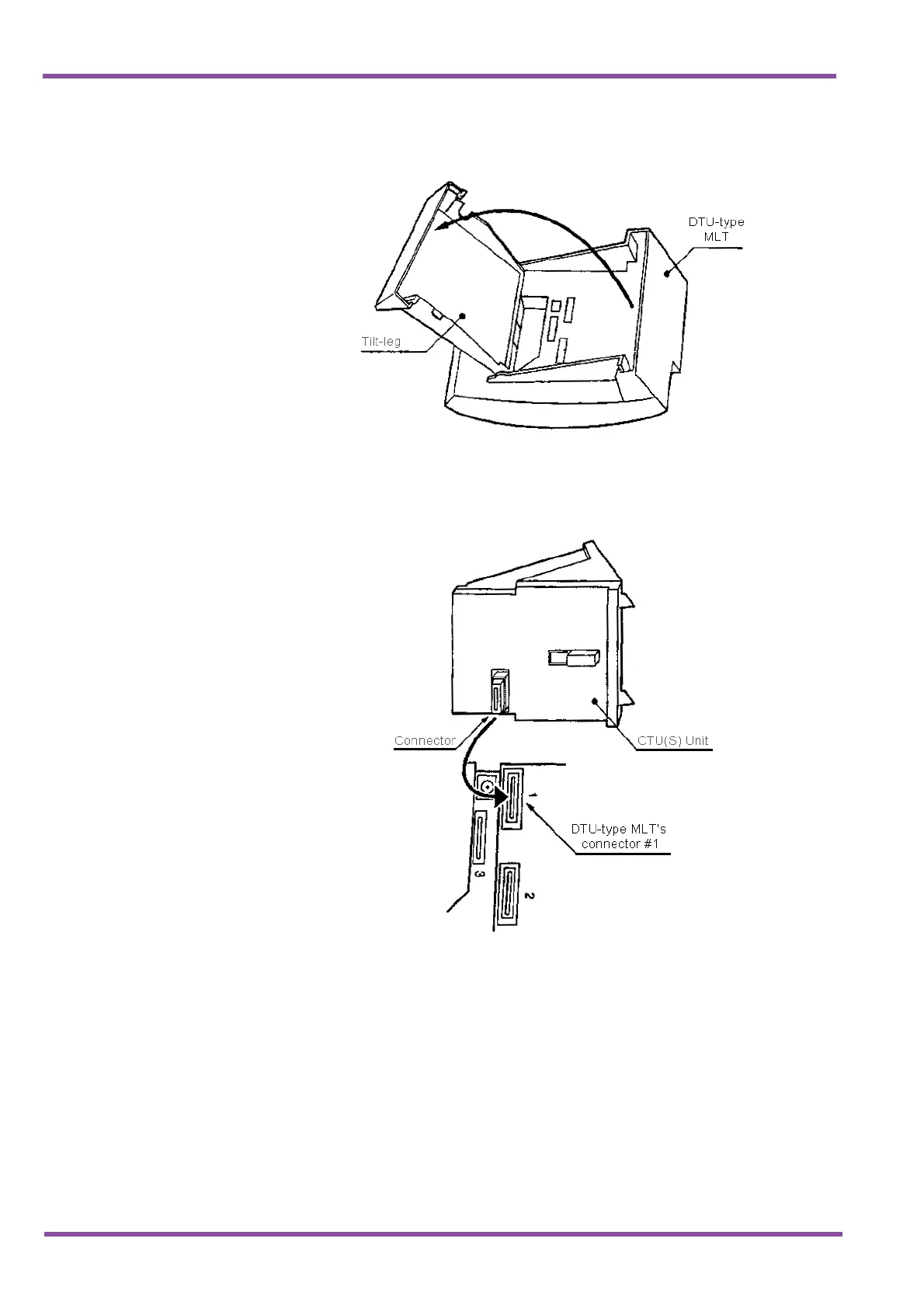

Figure 7-28 Opening the Base of the DTU-type MLT
Figure 7-29 Installing the CTU(S)-UA Unit
