3.4.4 Switch Settings
Set SW1 according to the equipment installed, as follows:
ISDN.PHS When a BRT(4)-U13 ETU or PRI(1)-13
ETU are installed, with or without a BSC-
U13 ETU or BSU(2)-U13 ETU (Default).
PHS When a BSC-U13 ETU or BSU(2)-U13
ETU is installed, but both the BRT(4)-13
ETU and PRI(1)-U13 ETU are not.
3.5 MIFM-U13 ETU
3.5.1 Description
The MIFM-U13 ETU provides additional memory and
processing power for PC Programming, SMDR, LCR, and
Caller ID. PC Programming and SMDR are standard with
this ETU. LCR and Caller ID require the KML(XXX)UA Unit
or the KMM(XXX)UA Unit to be mounted on the
MIFM U13 ETU.
3.5.2 Installation
A maximum of one MIFM-U13 ETU can be installed in the
Xen system.
When the MIFM-U13 ETU is installed in an IF slot (as
opposed to the ISA slot) the MIF-Modem (MDM-U13 Unit)
can be mounted on the MIFM-U13 ETU. This method is
desirable because the MIF-Modem Unit does not require
any external cabling to analogue ports.

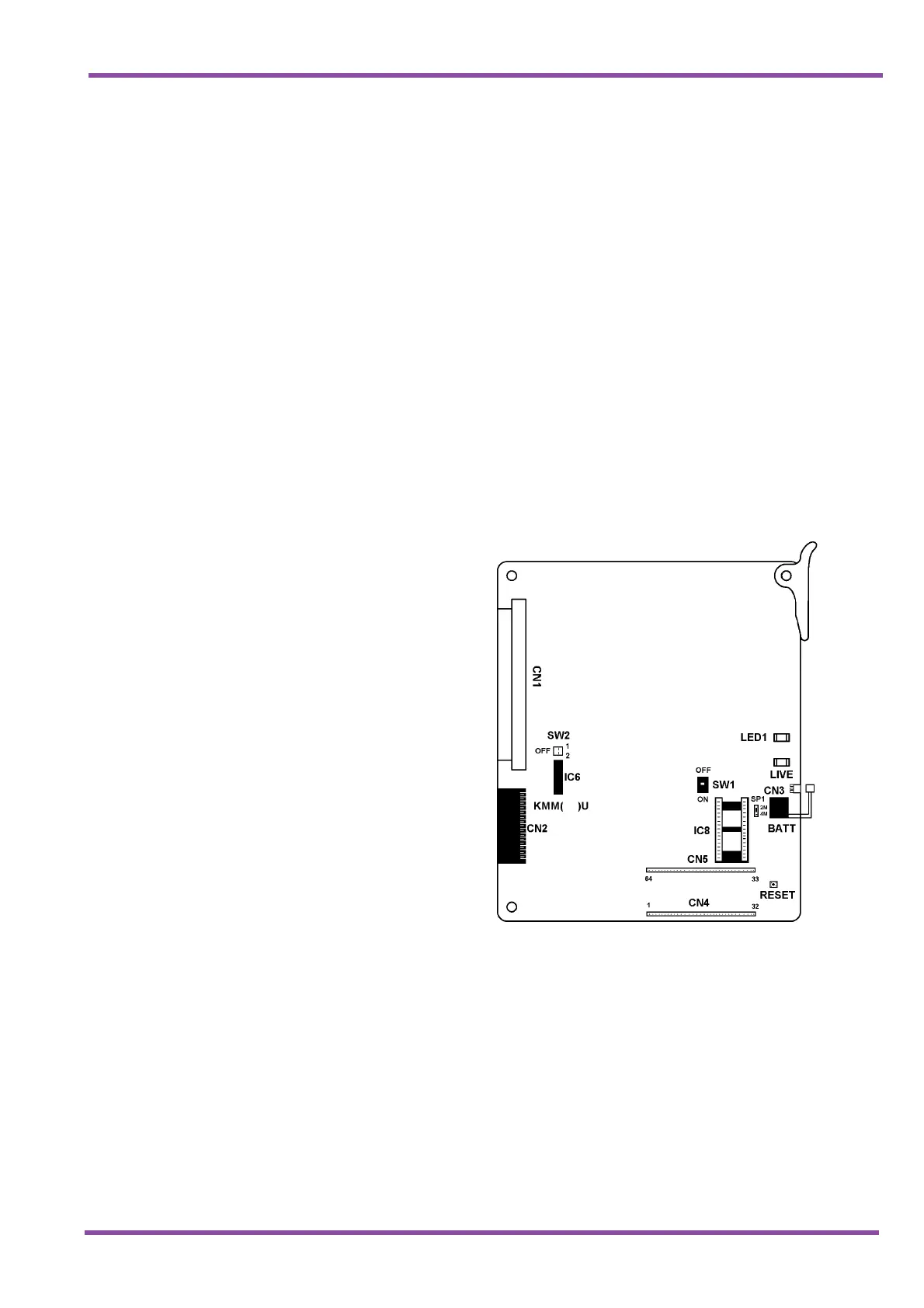

Figure 5-13 MIFM-U13 ETU
