NEC Australia Pty Ltd Xen Master & Xen Axis
7 - 204 Installing Optional Equipment
A6-324000-642-01 – Release 4.0 May 2001
3. Plug the unit into the receptacle connector inside the
base plate. Refer to Figure 7-10 Attaching the ADA-
UA Unit to the Multiline Terminal.
4. Plug the cord of the ACA-UA Unit (AC adaptor) into
the jack on the APR-UA Unit. Lead the telephone
cord out through the groove in the base as shown in
Figure 7-17 Leading the Telephone Cord out from the
Unit.

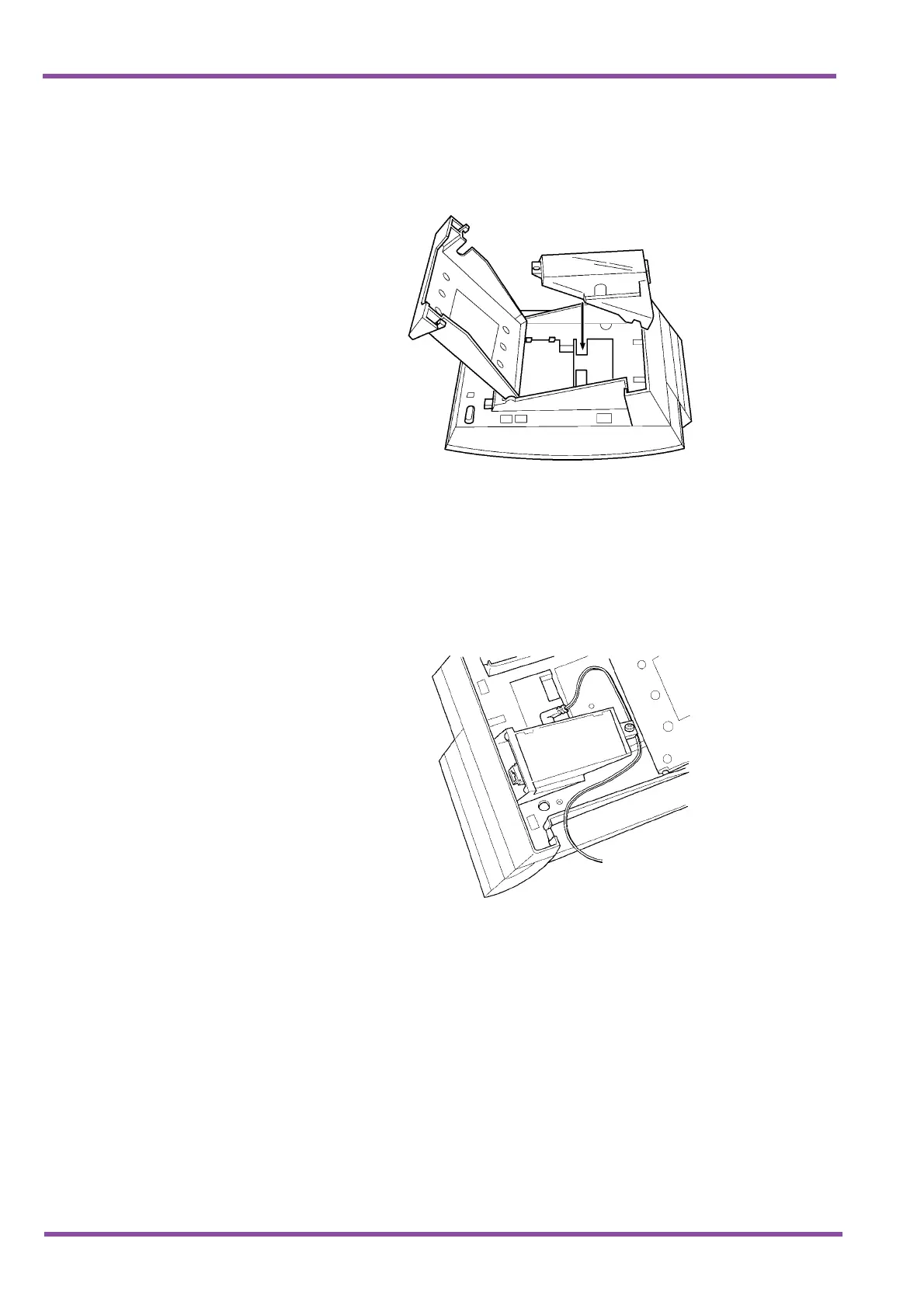

Figure 7-16 Attaching the Unit to the Multiline Terminal
Figure 7-17 Leading the Telephone Cord
out from the Unit
