NEC Xen Master - Figure 7-25 CTU(S)-UA Unit

NEC Australia Pty Ltd Xen Master & Xen Axis
7 - 210 Installing Optional Equipment
A6-324000-642-01 – Release 4.0 May 2001
✆ Line Cable to ESI(8)-U13 ETU
3.5.1.2 Outline
1. Telephone Stations that support CTU(S)-
UA
• DTU-8-1A ( ) TEL
• DTU-8D-1A ( ) TEL
• DTU-16D-1A ( ) TEL
• DTU-32D-1A ( ) TEL
2. Optional hardware to use with Telephone at
same time is restricted to ADA-UA Unit.

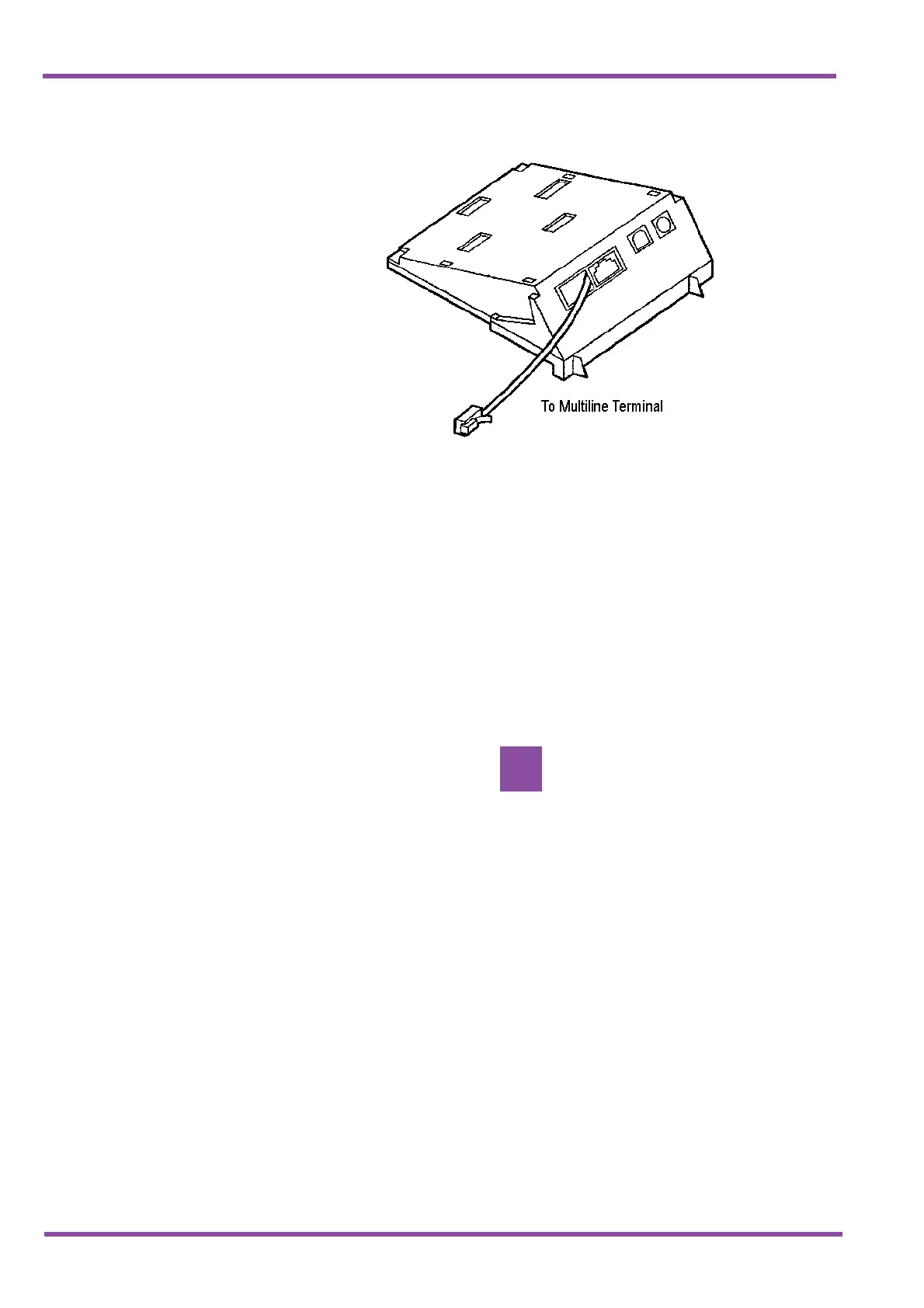

Figure 7-25 CTU(S)-UA Unit
• The CTU Unit requires an AC
adapter (ACA-UA Unit).
• WMU-UA Unit is required to wall
mount the telephone fitted with a
CTU Unit.
• Do not modify CTU’s display
switch.
!
