4.3 Wall Mounting the KSU
1. Using the template and two of the four (locally provided)
screws, attach screws to the wall as shown in Figure 4-47
Using the Template. Do not thread in the last 3mm of
the screws.
2. Hang the KSU as shown in Figure 4-48 Hanging the KSU.

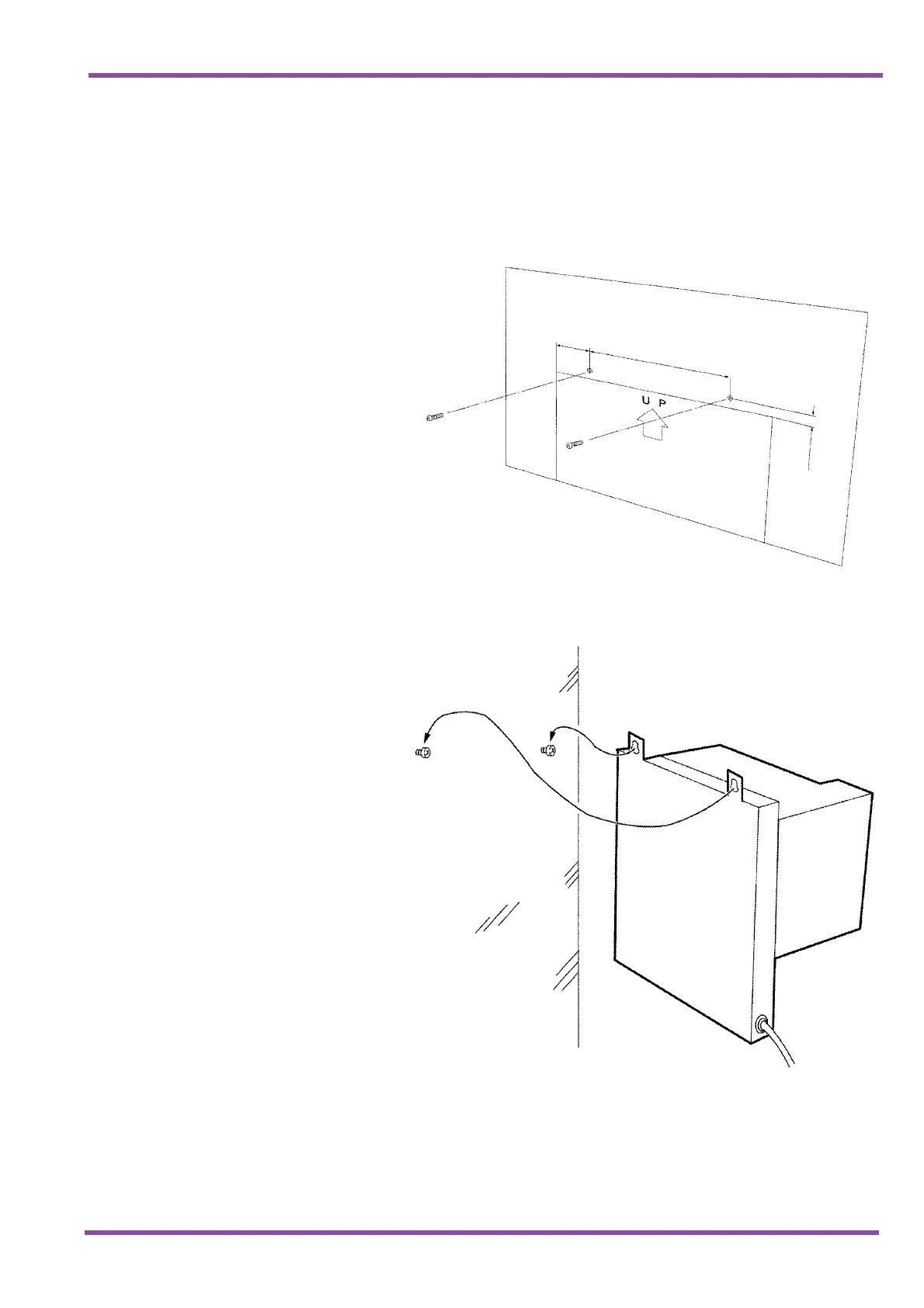

Figure 4-47 Using the Template
Figure 4-48 Hanging the KSU
