NEC Australia Pty Ltd Xen Master & Xen Axis
6 - 190 Installing DTU-Type Multiline Terminals
A6-324000-642-01 – Release 4.0 May 2001
S
ECTION
8
A
DJUSTING THE
H
EIGHT OF THE
M
ULTILINE
T
ERMINAL
The base plate on DTU-type Multiline Terminals are hinged. The bottom
portion can be adjusted up or down to raise or lower the height of the
terminal.
1. Turn the Multiline Terminal upside down and locate the tabs as
shown in Figure 6-16 Locating the Adjustment Tabs on the Multiline
Terminal.
2. Push the adjustment tabs and raise the base plate until it locks.

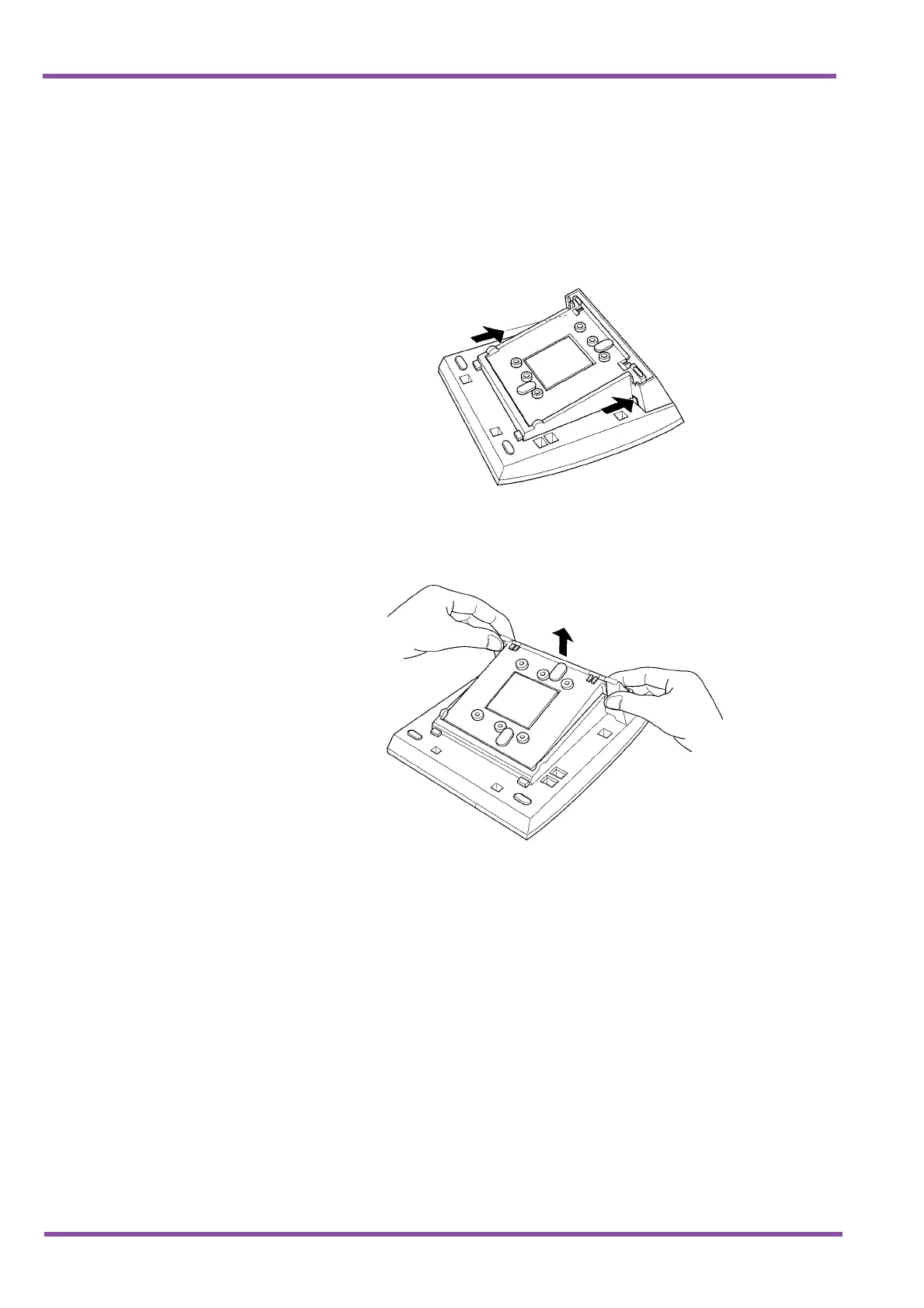

Figure 6-16 Locating the Adjustment Tabs on the Multiline Terminal
Figure 6-17 Raising the Base Plate on the Multiline Terminal
