NEC Australia Pty Ltd Xen Master & Xen Axis
7 - 236 Installing Optional Equipment
A6-324000-642-01 – Release 4.0
May 2001
3.10.3 Installing the Wall Mount Unit and Mounting the Multiline
Terminal using the WMU-UA Unit
If installing an HFU-UA Unit, CTA-UA Unit, CTU( )-UA Unit,
VDD-UA Unit or APR-UA Unit, a separate WMU-UA Unit
must be purchased to accommodate these units.
1. Remove the line cord, base plate and base cover
from the Multiline Terminal as shown in the previous
section.
2. Cut off the tabs on the adaptor as shown in Figure 7-
69 Removing the Tabs from the adaptor.
3. Remove the tabs from the WMU-UA Unit as shown in
Figure 7-70 Removing the Tabs from the WMU-UA
Unit. (Tabs removed depends on the Multiline
Terminal type.)

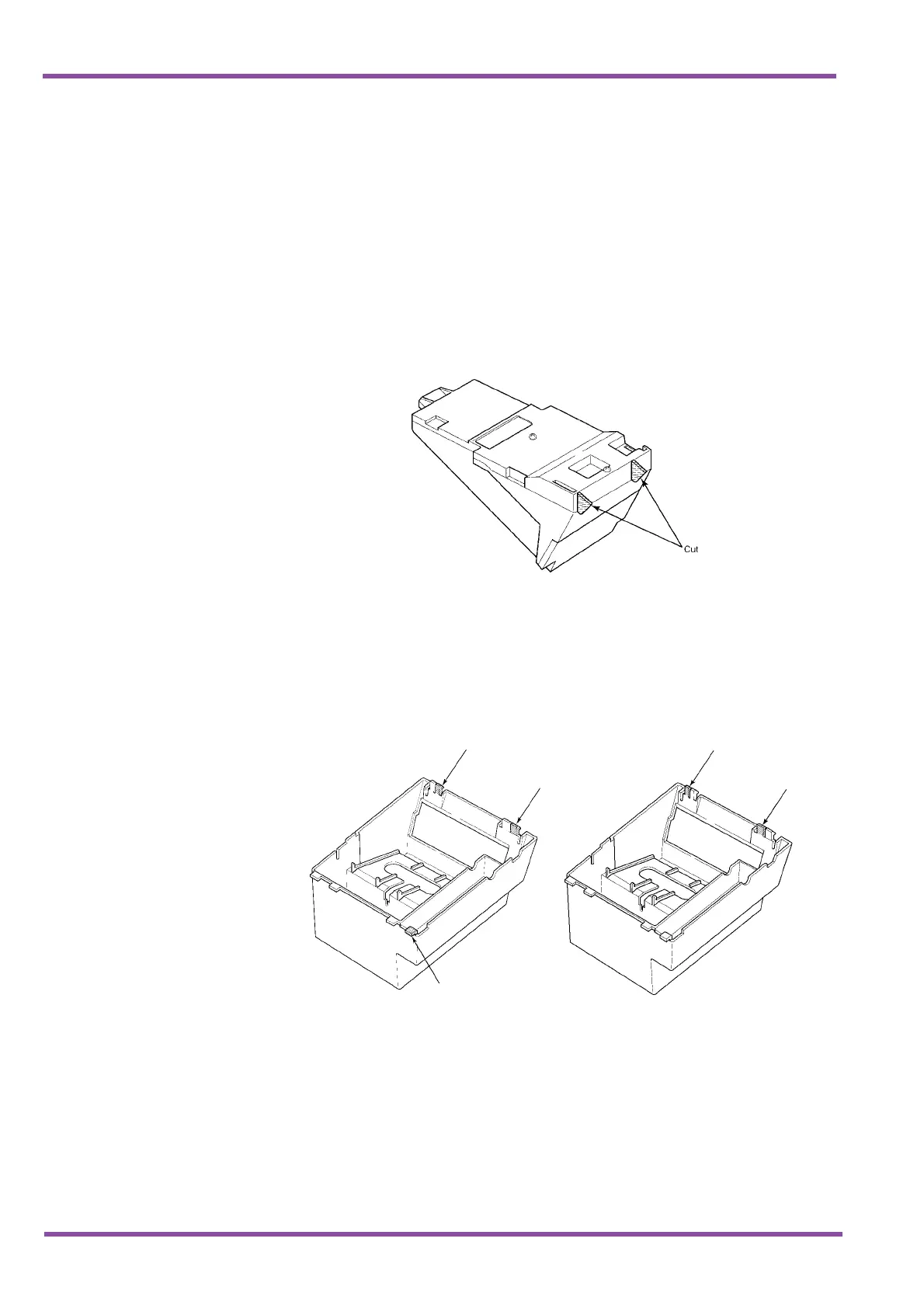

Figure 7-69 Removing the Tabs from the adaptor
Figure 7-70 Removing the Tabs from the WMU-UA Unit
Cut
Cut
Cut
Cut
Cut
DTU-32D-1A (WH) TELDTU-8-1A (WH) TEL
DTU-8D-1A (WH) TEL
DTU-16D-1A (WH) TEL
DCU-60-1A (WH) CONSOLE
To Next Page
