May 2001
System Hardware Manu
al
7 - 219
A6-324000-6
42-01 – Releas
e 4.0
May 2
001
3.

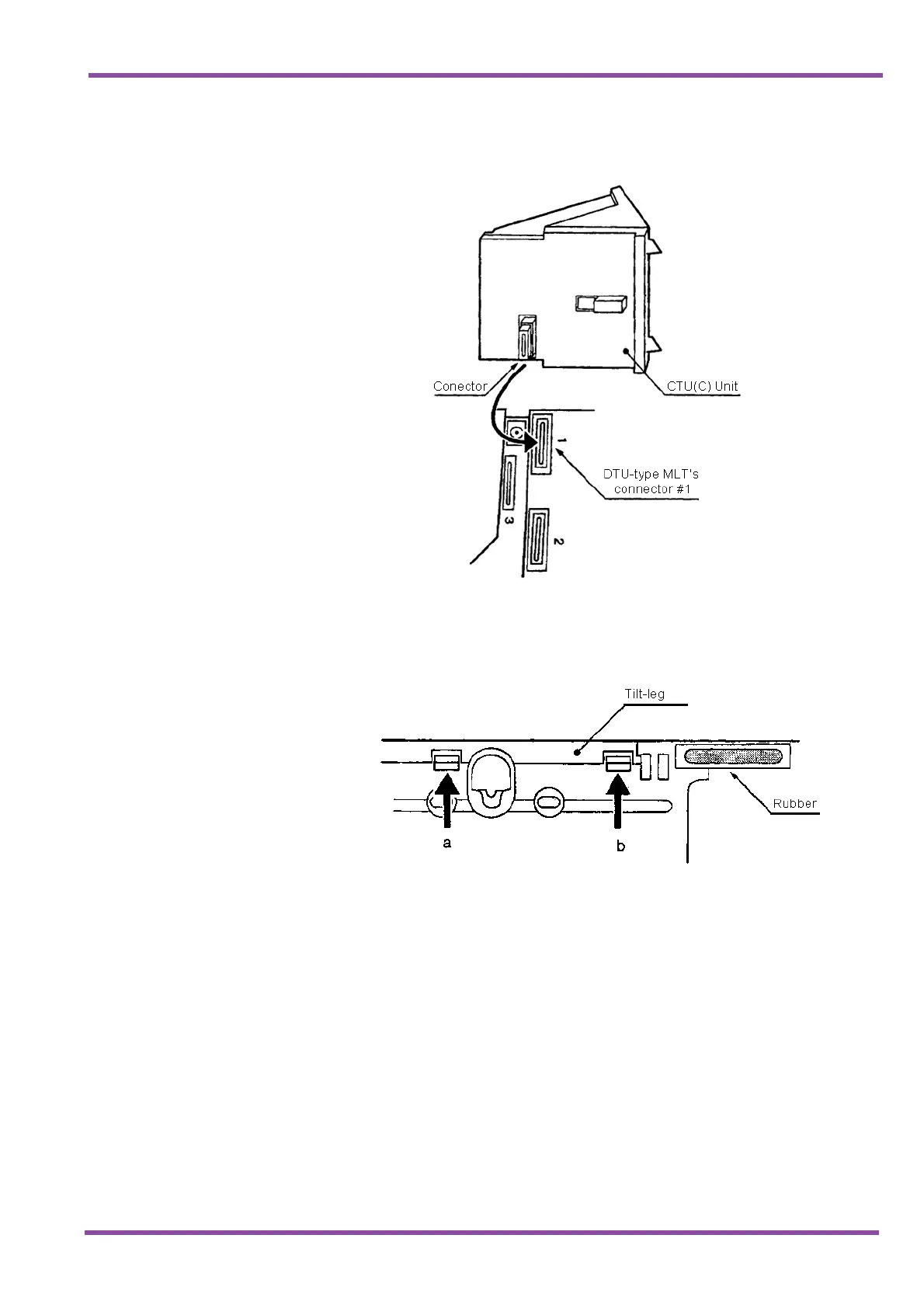

PLug the CTU(C)
Unit’s connec
tor int
o
DTU-T
ype ML
T’s Connect
or #1.
4.
With both thumbs, pres
s in a & b to remove
the end cover
.
Figure 7-41 Installing the CTU(
C)-UA Unit
Figure 7-42 Removing the End Co
ver
236
238
