NEC Australia Pty Ltd Xen Master & Xen Axis
4 - 64 Installing KSUs
A6-324000-642-01 – Release 4.0
May 2001
3. When all three amphenol cables are used, the velcro strap is
threaded around the cables and attached to the KSU.
3.5 Wall Mounting the Basic KSU
1. Before wall mounting the KSU, the wall mount bracket should
be attached to fire retardant plywood. Using the four (locally
provided) screws, attach the wall mount bracket to the wall as
shown in Figure 4-12 Attaching the Wall Mount Bracket.

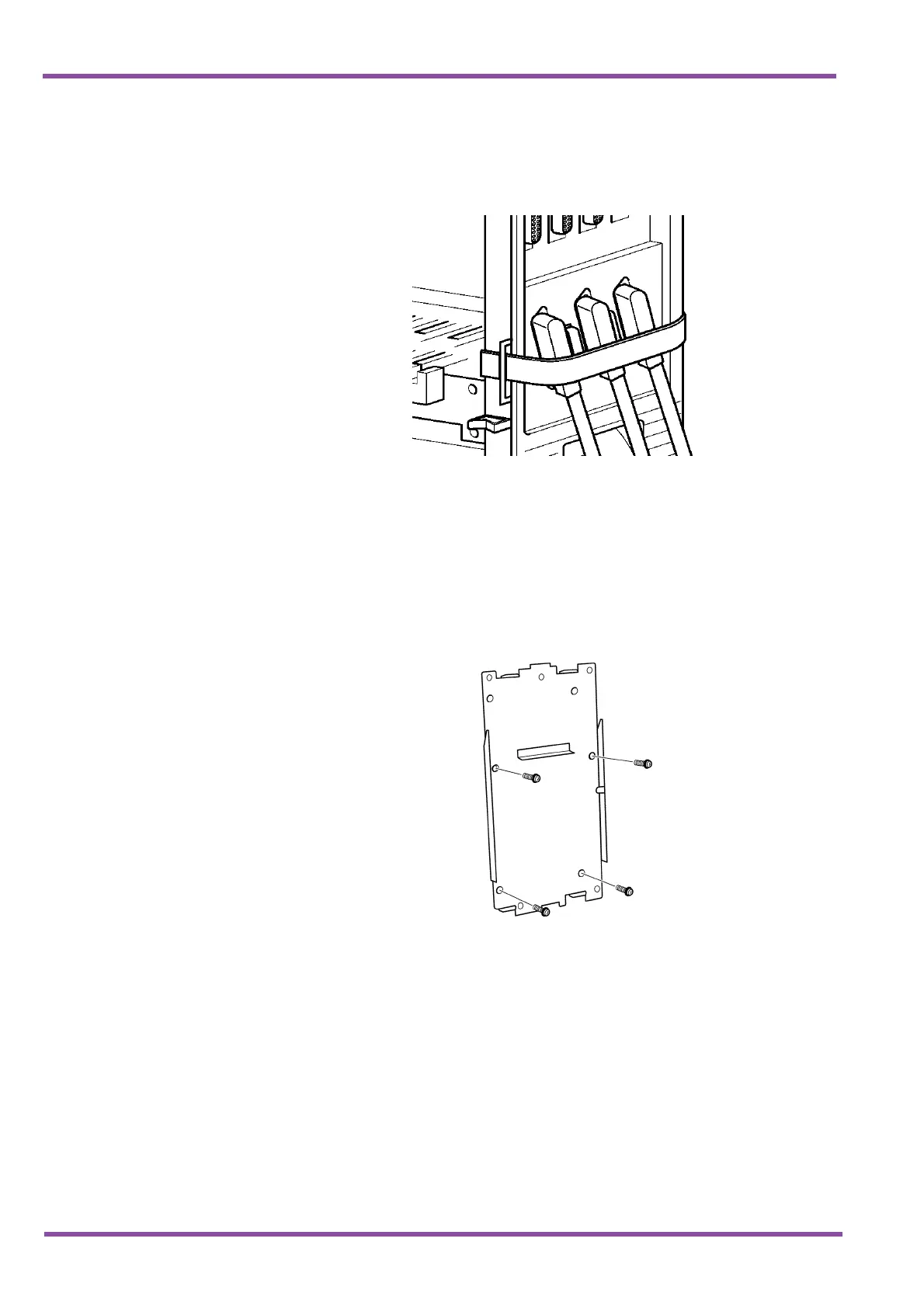

Figure 4-11 Threading the Velcro Strap to Secure Three Amphenol Cables
Figure 4-12 Attaching the Wall Mount Bracket
