If using a modular jack instead of a wall plate, plug
the line cord into the modular jack, wrap the extra
cord and secure it with a tie wrap, and lead the line
cord out through the groove in the side of the
base unit.
8. With the base plate and base cover assembly
attached to the wall, hook the two bottom tabs on the
base cover into the tab slots on the base of the
Multiline Terminal.

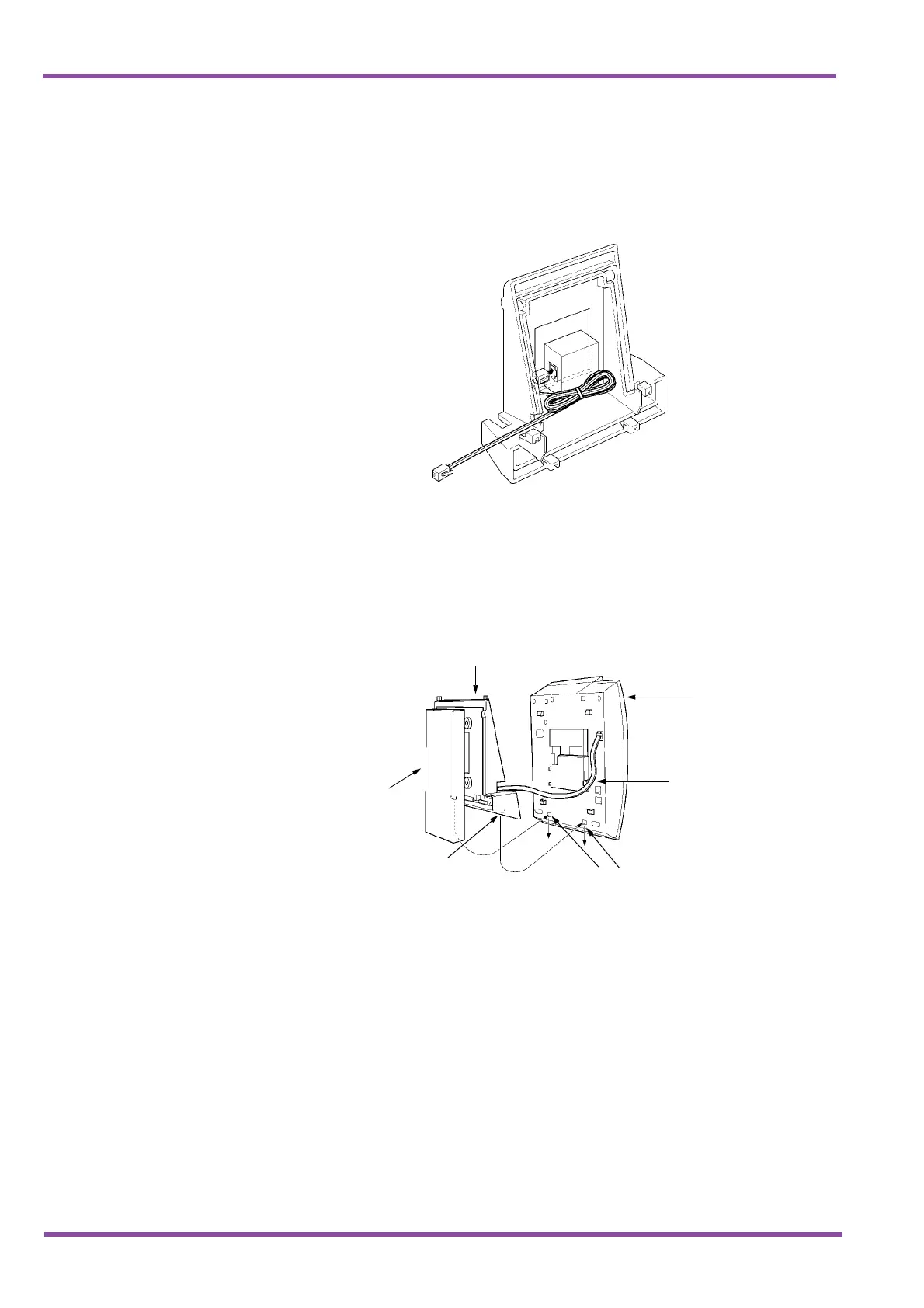

Figure 7-65 Plugging in the Line Cord Using a Modular Jack
Figure 7-66 Attaching the Bottom Tabs of the Multiline Terminal to the Base
Cover
Wall
Base Unit
Tab Slots
Multiline
Termin al
Tab
Line Cord
To Next Page
