NEC Xen Master - Figure 4-15 Securing the Basic KSU to the Wall

NEC Australia Pty Ltd Xen Master & Xen Axis
4 - 66 Installing KSUs
A6-324000-642-01 – Release 4.0 May 2001
4. Secure the KSU to the wall by placing a screw and washer
(locally provided) into the hole in the centre of the wall mount
bracket as shown in Figure 4-15 Securing the Basic KSU to the
Wall.

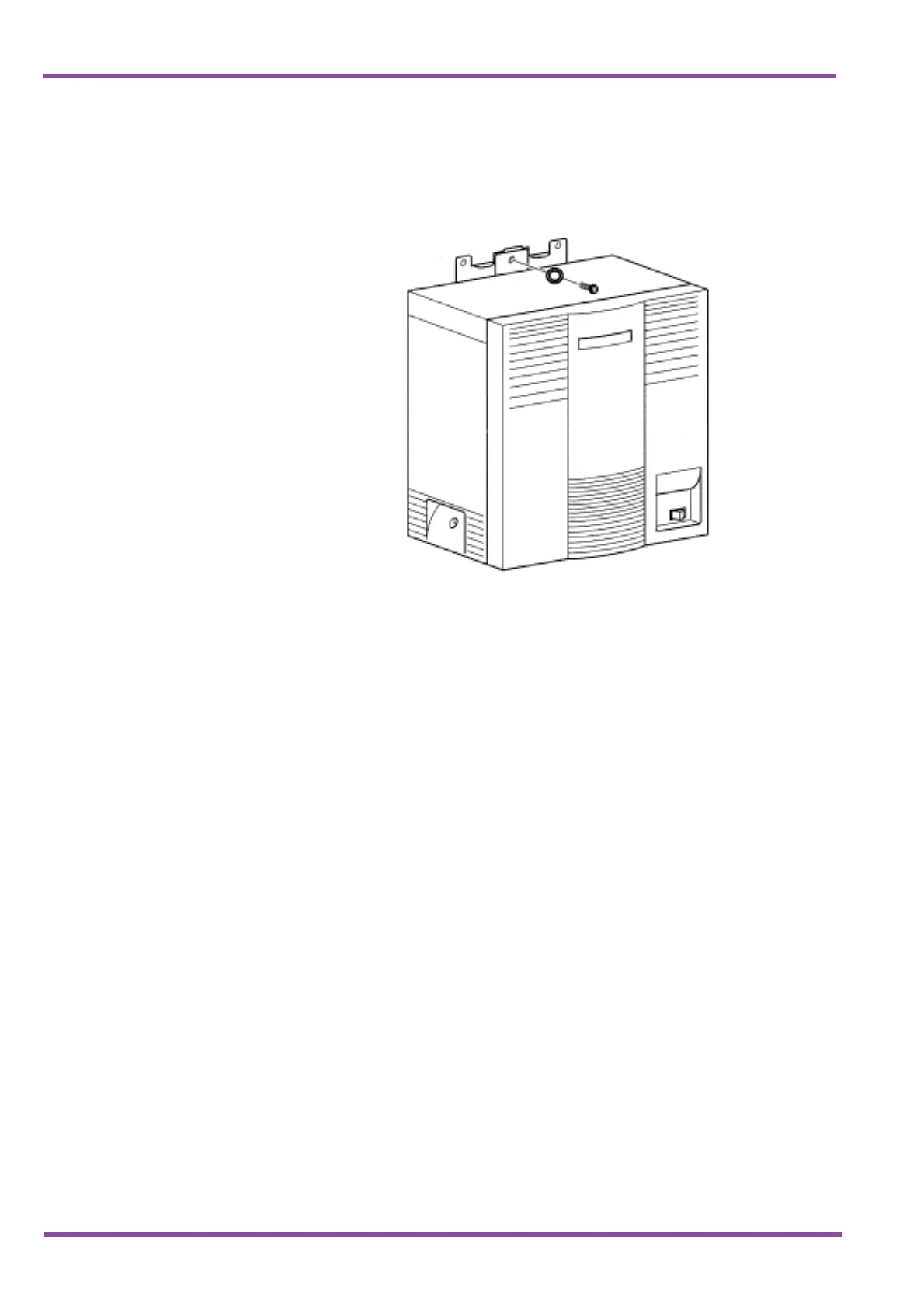

Figure 4-15 Securing the Basic KSU to the Wall
