NEC Xen Master - Figure 5-35 VMS( )-U13 ETU

NEC Australia Pty Ltd Xen Master & Xen Axis
5 - 166 Installing Electronic Telephone Units
A6-324000-642-01 – Release 4.0 May 2001
5.5.2 Installation
✆ A maximum of 4 VMS(
4
)-U13 ETUs can be installed
in the Xen Master system, 3 per KSU in slots S1~S8
of the first, second or third KSU, up to a maximum of
16 Voice Mail ports.
✆ A maximum of 4 VMS(
4
)-U13 ETUs can be installed
in the Xen Axis system, in slots S2~S7, up to a
maximum of 16 Voice Mail ports.

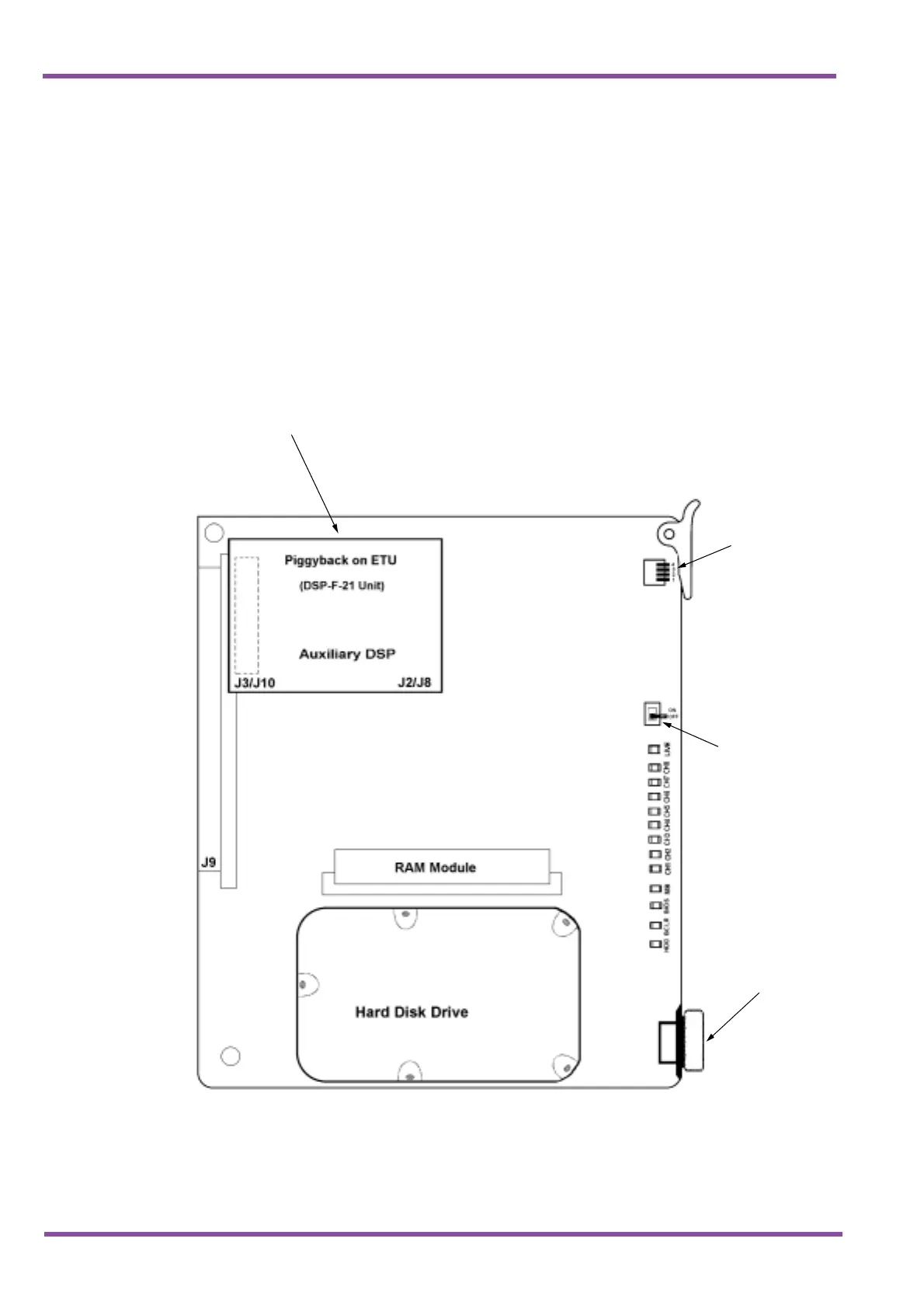

Figure 5-35 VMS( )-U13 ETU
8-port VMS(8)-U13 ETU shown
with 4-port auxiliary DSP installed.
For VMS(2/4)-U13 ETU, the
auxiliary is not required.
COM 1
Local Connection
DIP Switch
Up = Off
Down = On
Make Busy Switch
