NEC Australia Pty Ltd Xen Master & Xen Axis
4 - 60 Installing KSUs
A6-324000-642-01 – Release 4.0
May 2001
3.2 Removing the KSU Cover
The front cover must be removed to access the battery, cables and
ETU slots:
1. Loosen the screw that is located near the on/off switch, on the
right side of the KSU. Do not remove screw from the unit.
2. Remove the front panel by sliding it to the right and pulling it
outward.
3.3 Installing a Front Cover Extender (FCE-U13 Unit)
When installing a VDH2(8)-U13 ETU, a Front Cover Extender is
required to allow for the cabling.

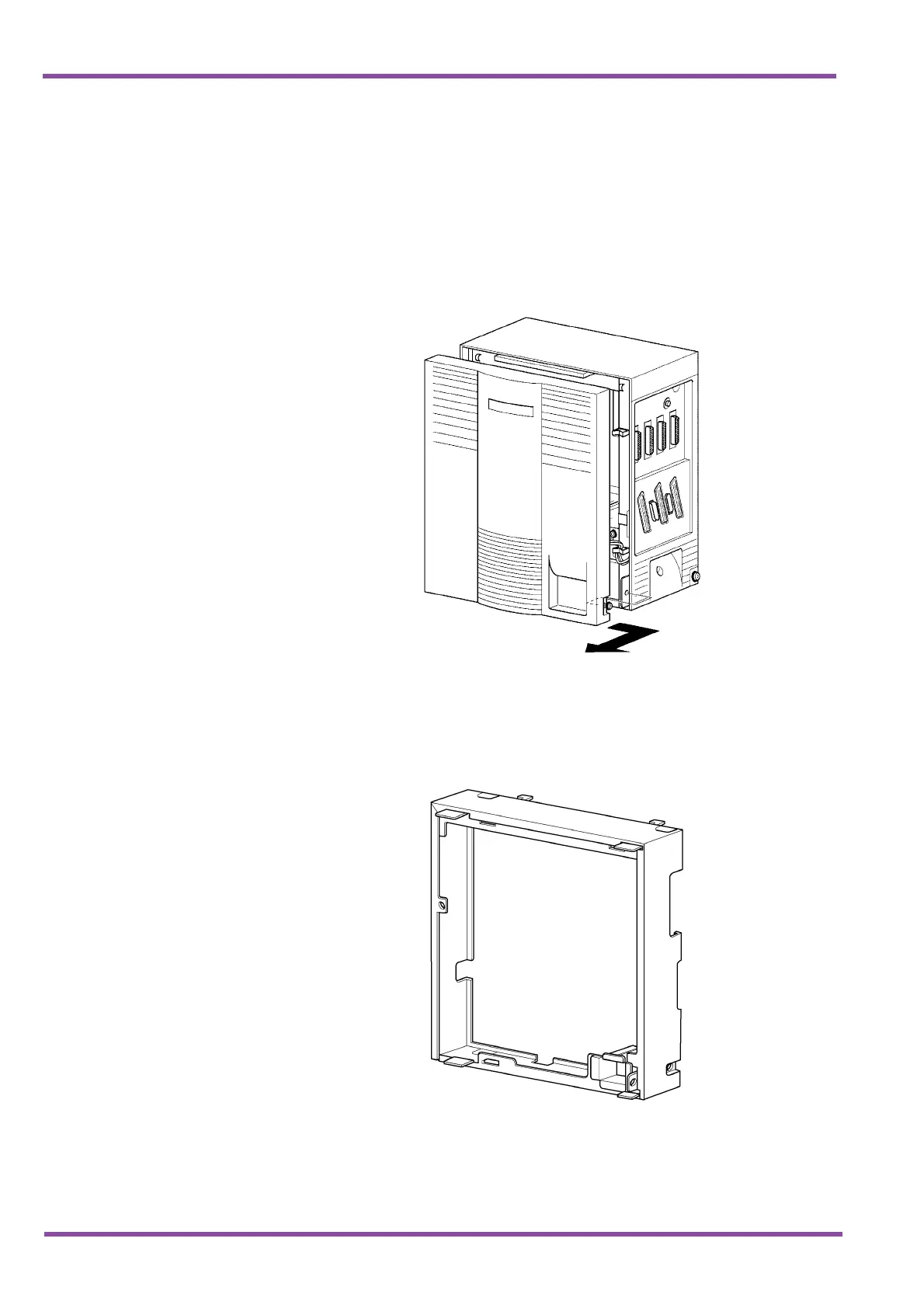

Figure 4-3 Removing the Front Panel of the KSU
Figure 4-4 Front Cover Extender (FCE-U13 Unit)
