May 2001
System Hardware Manual 6 - 183
A6-324000-642-01 – Release 4.0
May 2001
A maximum of 120 DTU-16D-1A (WH) TELs can be installed in an
Xen Master system and a maximum of 32 in the Xen Axis system.
2.4 DTU-32D-1A (WH) TEL
This digital Multiline Terminal has 16 programmable line keys (each
with a two-colour LED), 16 one-touch keys, four softkeys, a built-in
speakerphone, headset jack, a large LED to indicate incoming calls
and messages, and compatibility with ADA-UA, APR-UA, CTA-UA,
CTU( )-UA, HFU-UA, and VDD-UA Units.
This terminal is also equipped with a 3-line, 24-character, adjustable
Liquid Crystal Display (LCD).
System software can be changed so this Multiline Terminal can have
24 programmable line keys and 8 one-touch keys.

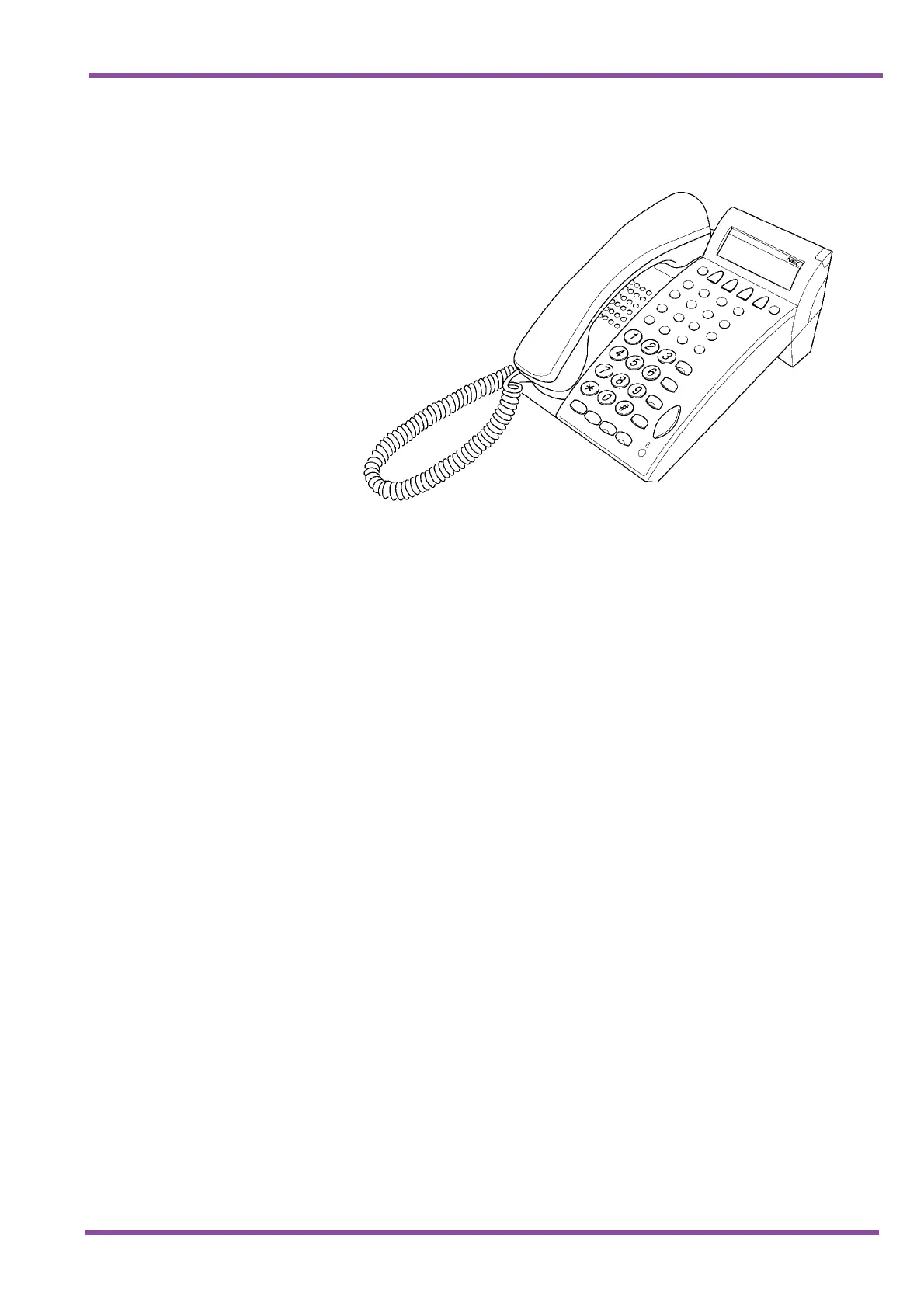

Figure 6-3 DTU-16D-1A (WH) TEL Multiline Terminal
