2. After the bracket is mounted to the wall, peel off the spacer
backing. Place and adhere the spacer to the position shown in
Figure 4-14 Attaching the Wall Mount Bracket With Spacer.
3. Hang the KSU on the two hooks protruding from the wall
mount bracket as shown in Figure 4-14 Hanging the Basic
KSU on the Bracket.

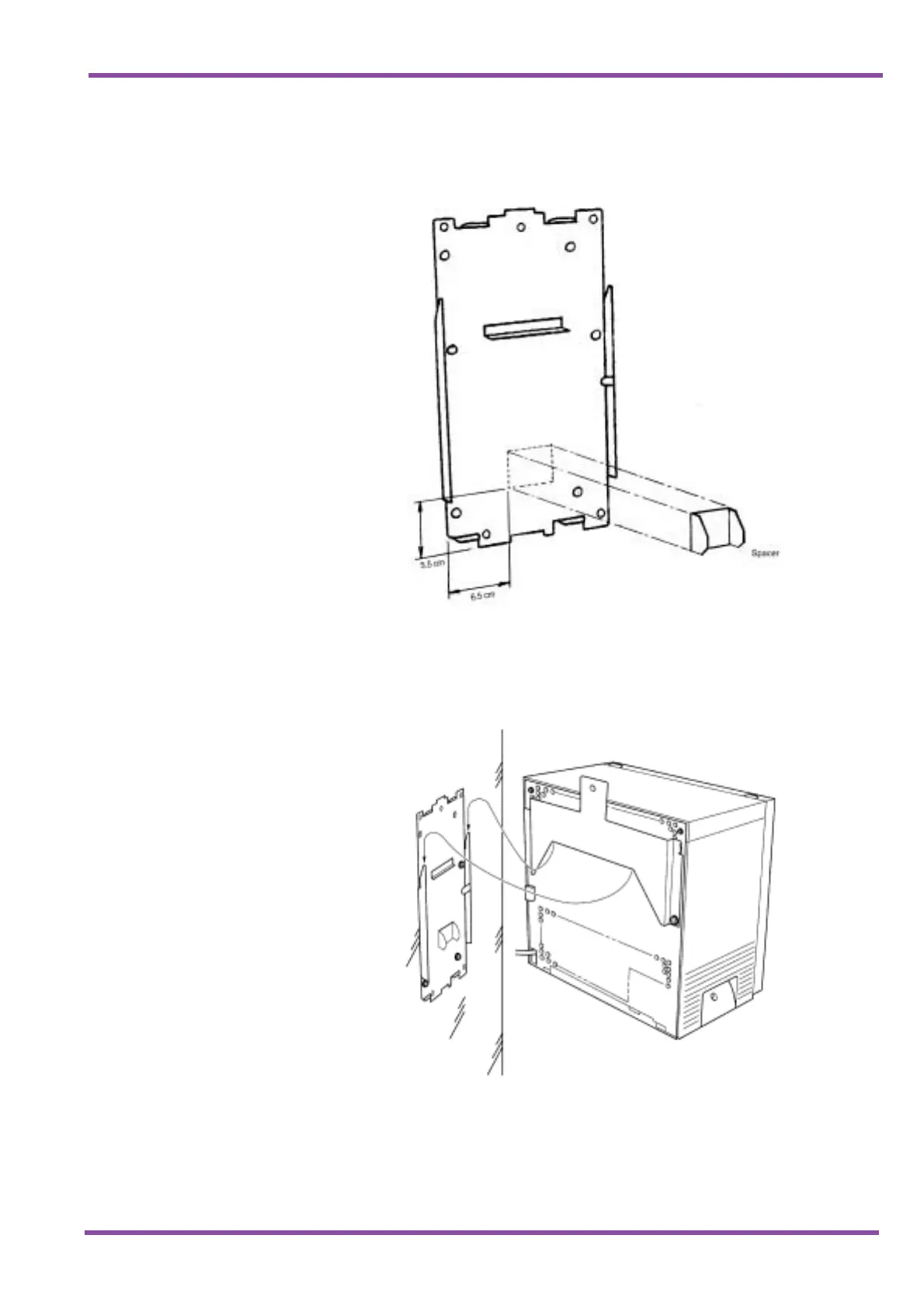

Figure 4-13 Attaching the Wall Mount Bracket Spacer
Figure 4-14 Hanging the Basic KSU on the Bracket
