NEC Xen Master - Figure 4-32 Fitting the Battery Box to Floor Mount; Figure 4-33 Installing EBB

May 2001
System Hardware Manual 4 - 79
A6-324000-642-01 – Release 4.0 May 2001
2. Slide the battery box floor side backward
from the front side of the floor mount so that
holes A-E at the base of the battery box
match with points and slide point E into
hole E.
3. Install EBB to floor mount using the 2
screws supplied with EBB.

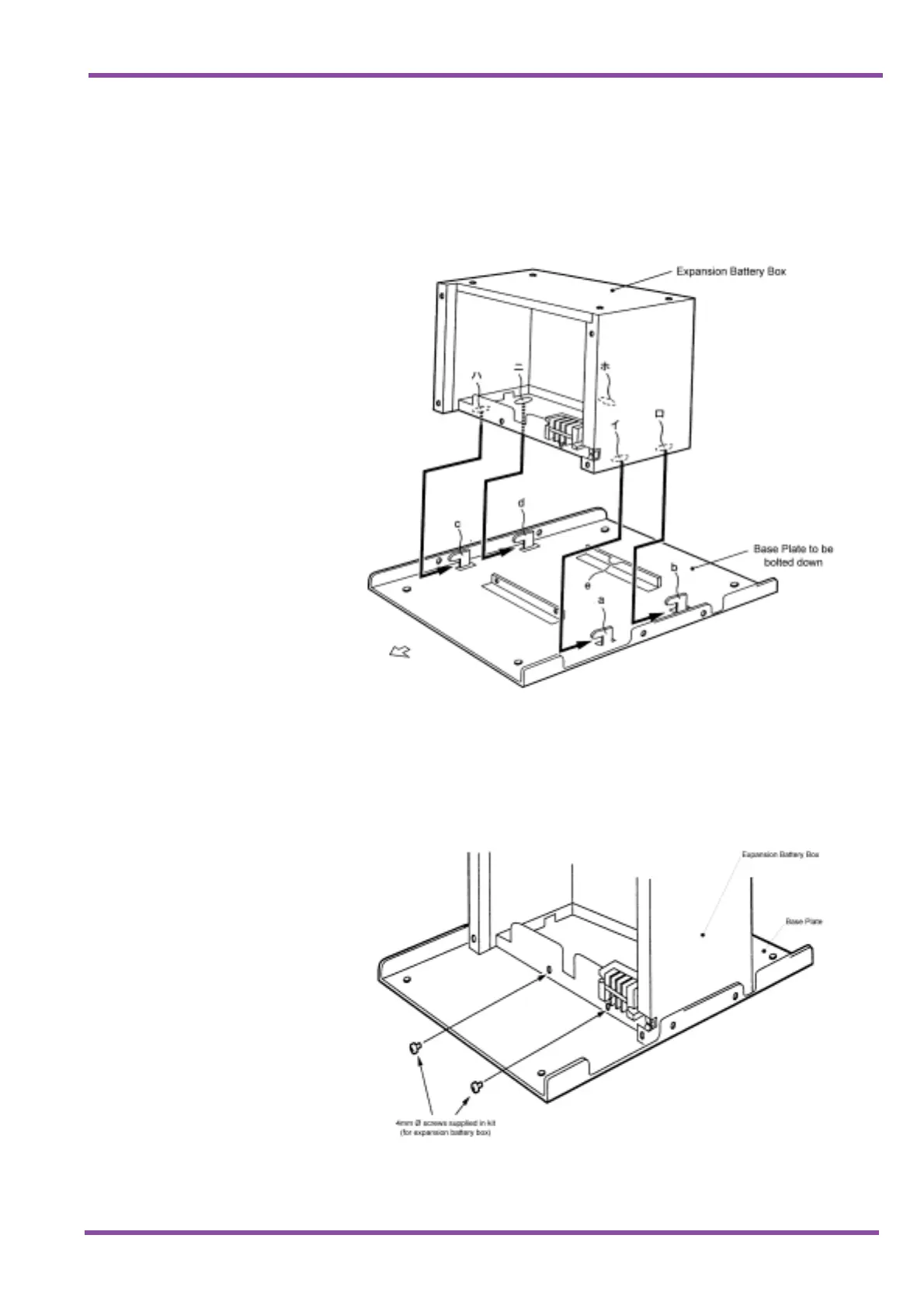

Figure 4-32 Fitting the Battery Box to Floor Mount
Figure 4-33 Installing EBB
