1. Connect cabling to the external batteries as shown in
Figure 4-57 Connecting Cables for External Batteries.
2. Route the cables through the clamps on the bottom
right-hand side of the KSU.

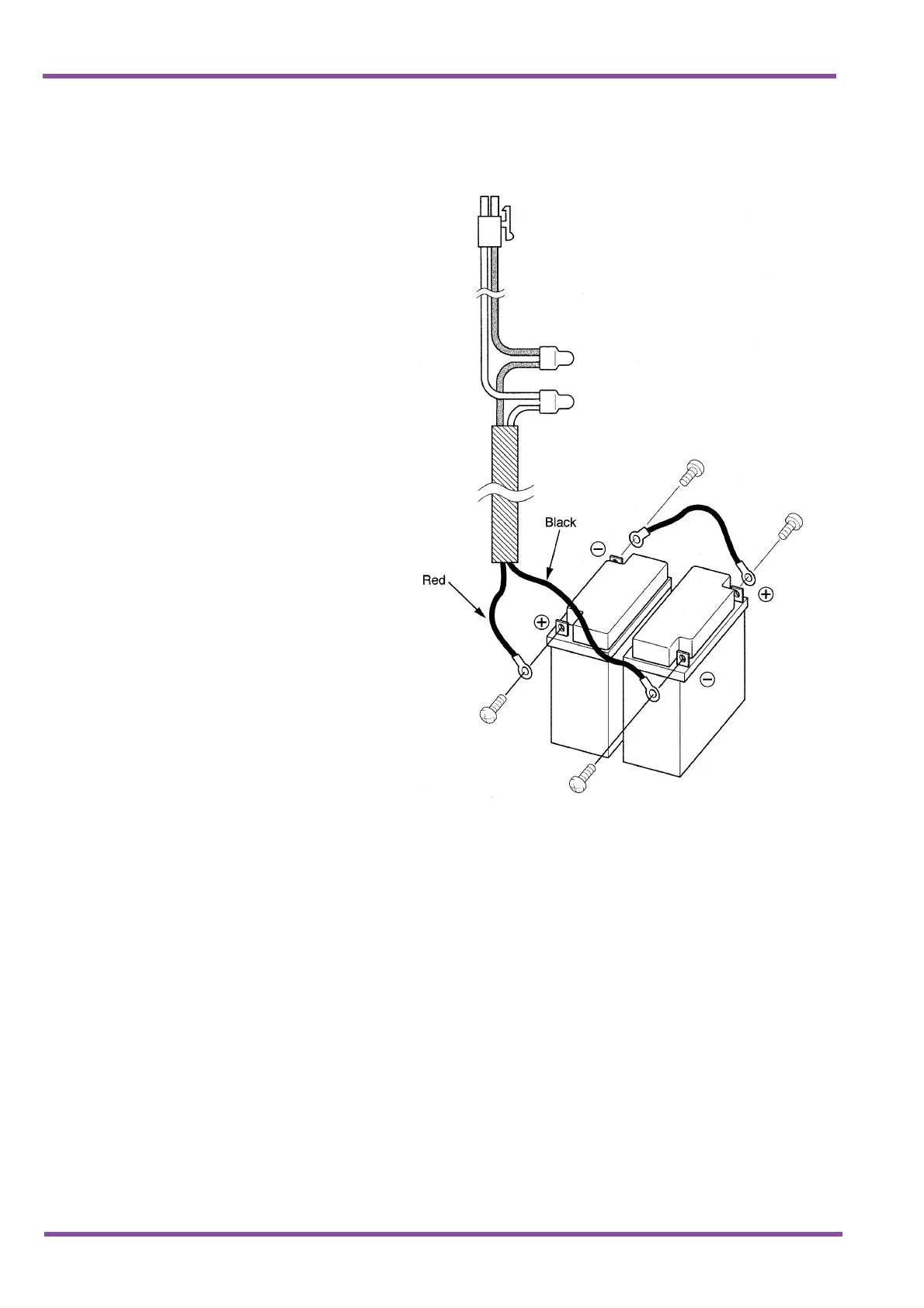

Figure 4-57 Connecting Cables for External Batteries
