NEC Xen Master - Figure 7-45 Connecting the CTU(C) Line Cord; Figure 7-46 Securing the Line Cord

May 2001
System Hardware Manual 7 - 221
A6-324000-642-01 – Release 4.0 May 2001
7. Insert CTU(C)’s line cord modular jack into
DTU-Type MLT’s modular jack marked
"LINE" until you hear a click.
8. Secure the CTU(C) line cord by slotting it in
the tilt-leg’s clasp.

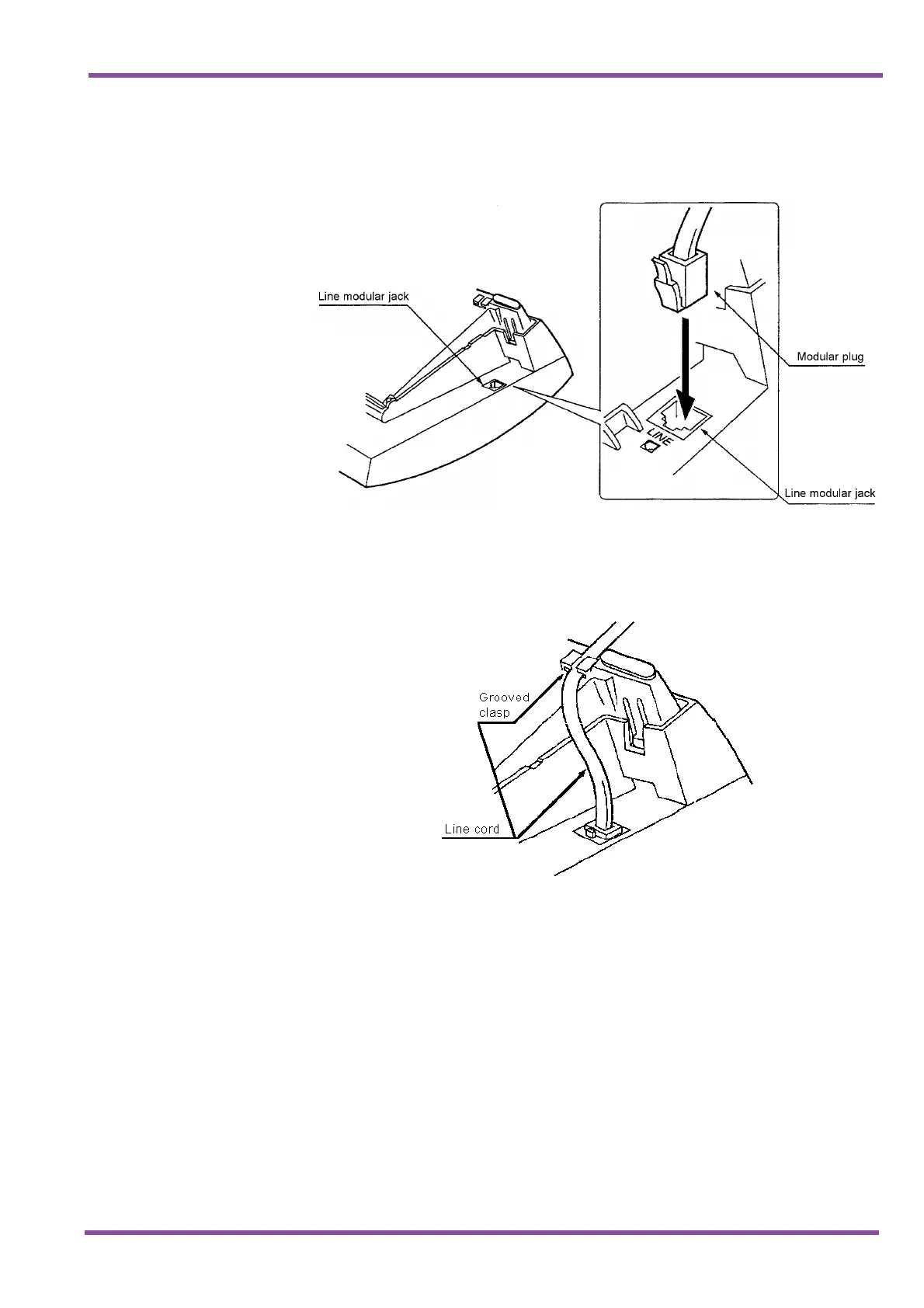

Figure 7-45 Connecting the CTU(C) Line Cord
Figure 7-46 Securing the Line Cord
