NEC Xen Master - Figure 7-38 CTU(C) Connection

May 2001
System Hardware Manual 7 - 217
A6-324000-642-01 – Release 4.0 May 2001
3.5.2.3 Connections
The CTU(C) Unit can support connections from
the VDH2(8)-U13 ETU.
Required Equipment:
• ESI(8)-U13 ETU
• DTU-type MLT
• CTU(S)-UA Unit
• ACA-U13 Unit (AC Adapter) (not provided)
• USB cable (A to B type) (not provided)
• 10-BASE-T cable (not provided)

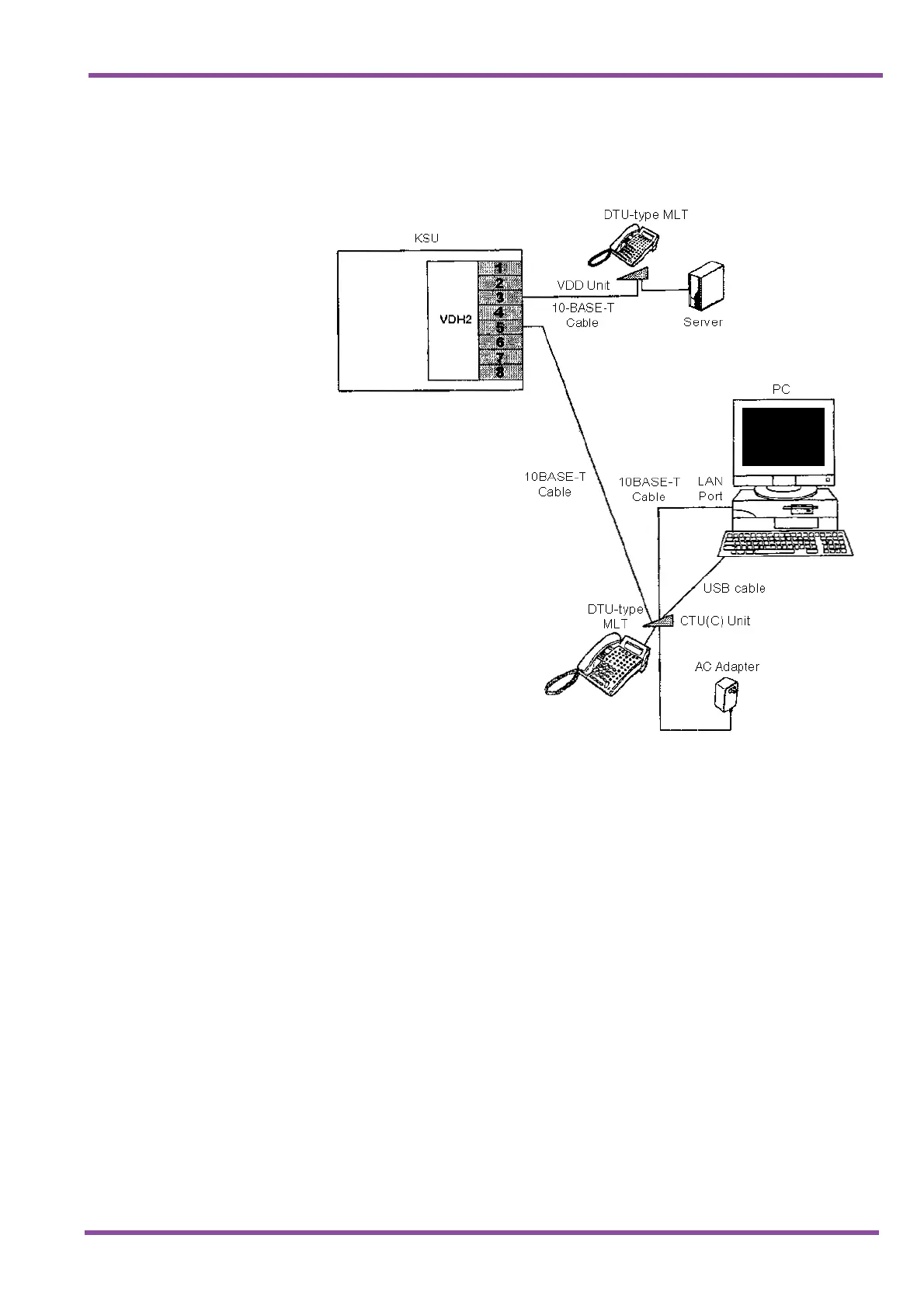

Figure 7-38 CTU(C) Connection
