May 2001
System Hardware Manual 5 - 103
A6-324000-642-01 – Release 4.0
May 2001
2.3 Removing an ETU from the KSU
1. To unlock the ETUs, push the slide bar to the left. (B64-U13
KSU and E64-U13 KSU only).
2. Lift the ejector tab on the ETU and pull the ETU out of the slot.
3. To lock the ETU into place, push the slide bar to the right.
(B64-U13 KSU and E64-U13 KSU only).

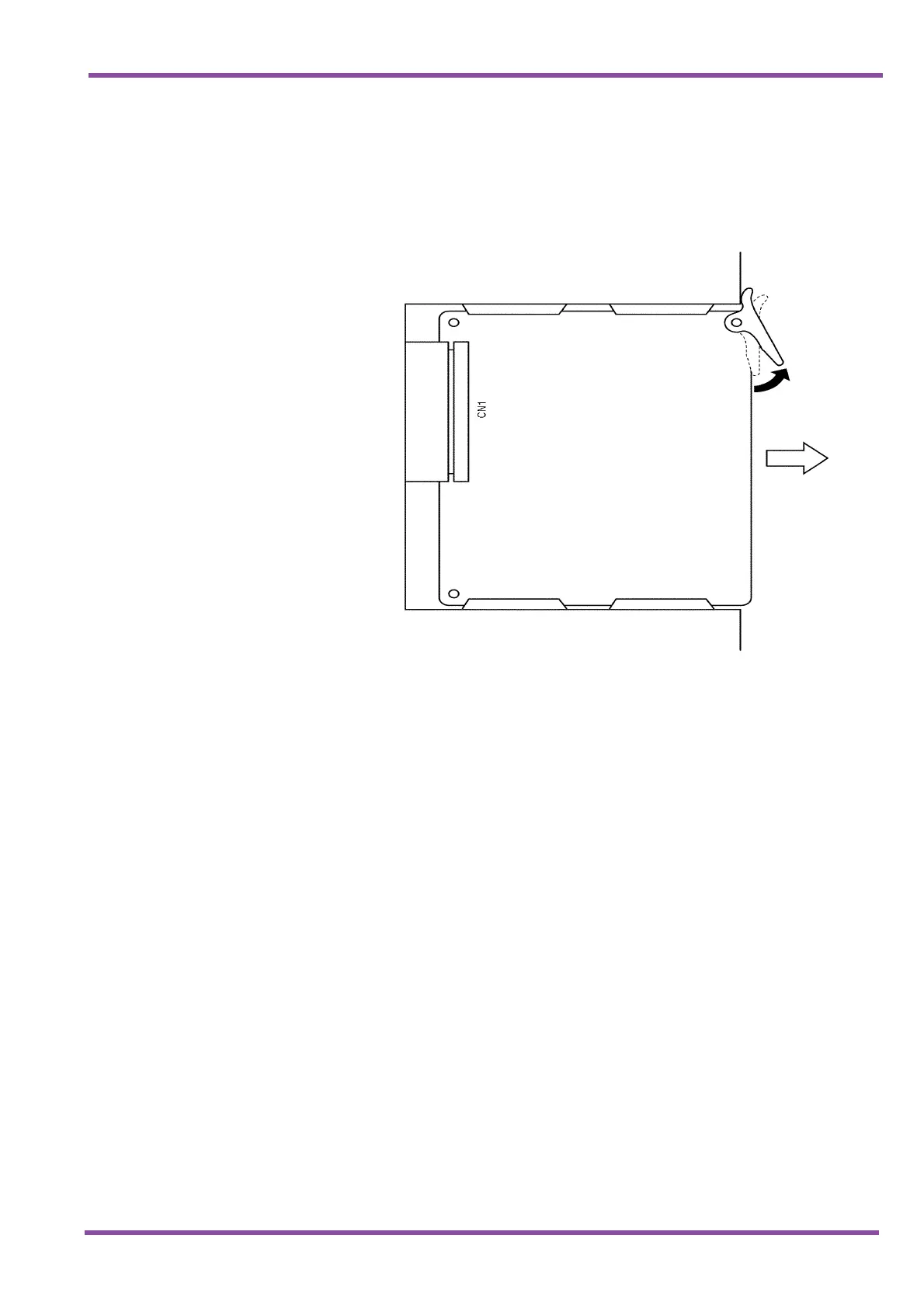

Figure 5-6 Lifting the Ejector Tabs on the ETU
