NEC Australia Pty Ltd Xen Master & Xen Axis
4 - 76 Installing KSUs
A6-324000-642-01 – Release 4.0
May 2001
3.10 Installing Built-In and External Batteries in the KSU
3.10.1 Built-In Battery Installation
1. Connect the two batteries in series as shown in
Figure 4-28 Connecting Built-In Batteries. The red
cord attaches to the red terminal and the black cord
attaches to the black terminal.
2. Install the batteries into the bottom space at the left
side the KSU. Refer to Figure 4-29 Placing the
Batteries into the KSU.
3. Install the battery cover as illustrated in Figure 4-29
Placing the Batteries into the KSU.

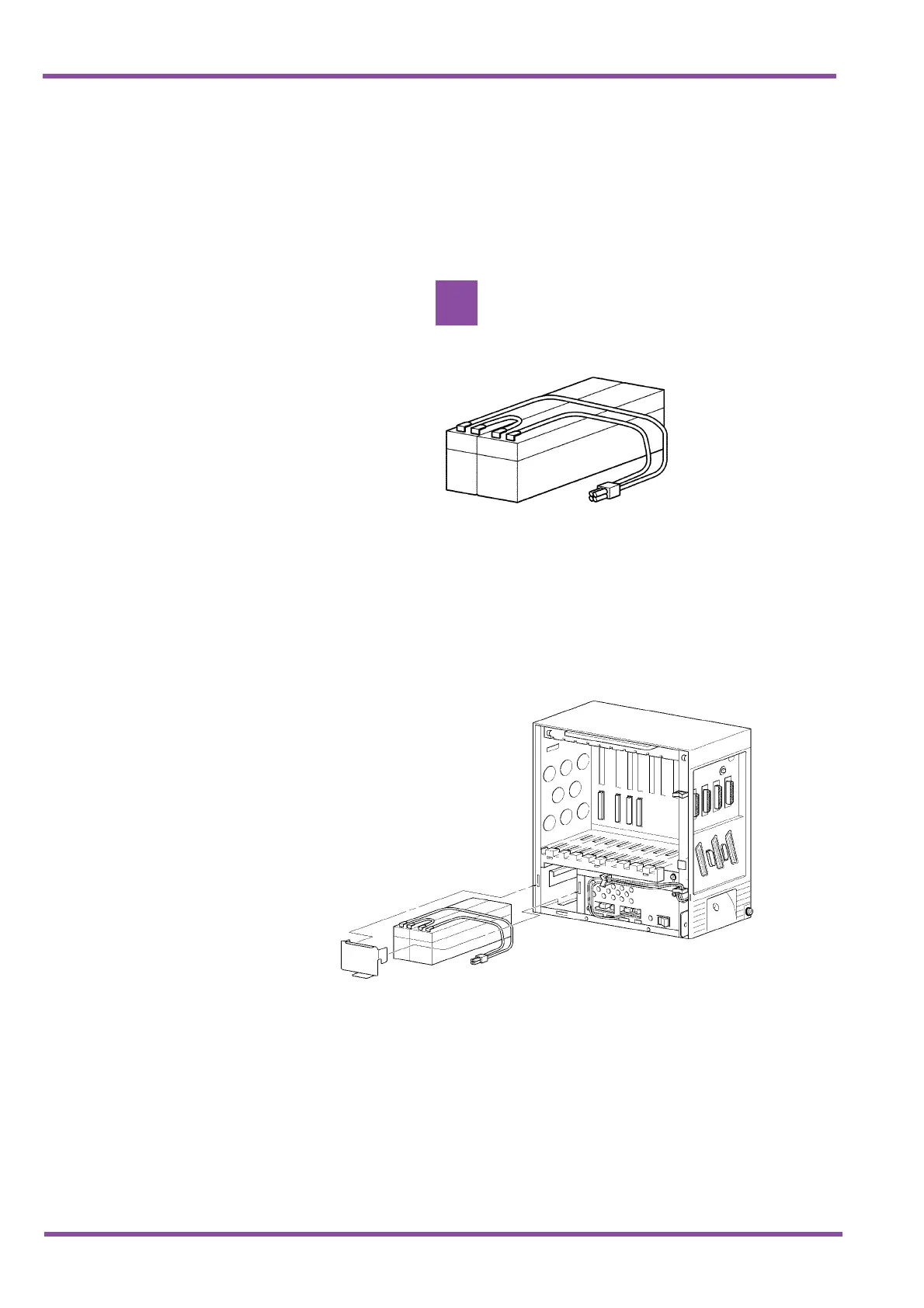

Figure 4-28 Connecting Built-In Batteries
Figure 4-29 Placing the Batteries into the KSU
Be careful not to misconnect the
terminals of the batteries.
!
