NEC Australia Pty Ltd Xen Master & Xen Axis
4 - 68 Installing KSUs
A6-324000-642-01 – Release 4.0
May 2001
3.7 Floor Mounting the Basic KSU
A system may be floor mounted if a suitable wall is not available.
The three KSUs of the system mount on top of each other in the
following manner:
1. Using the four (locally provided) screws, attach the floor mount
bracket to the floor.
2. Slide the KSU over the four hooks protruding from the floor
mount bracket as shown in Figure 4-17 Floor Mounting the
Basic KSU.
3. Secure the KSU to the floor mounting bracket using the two
screws as indicated in Figure 4-18 Securing the KSU to the
Floor Mounting Bracket.

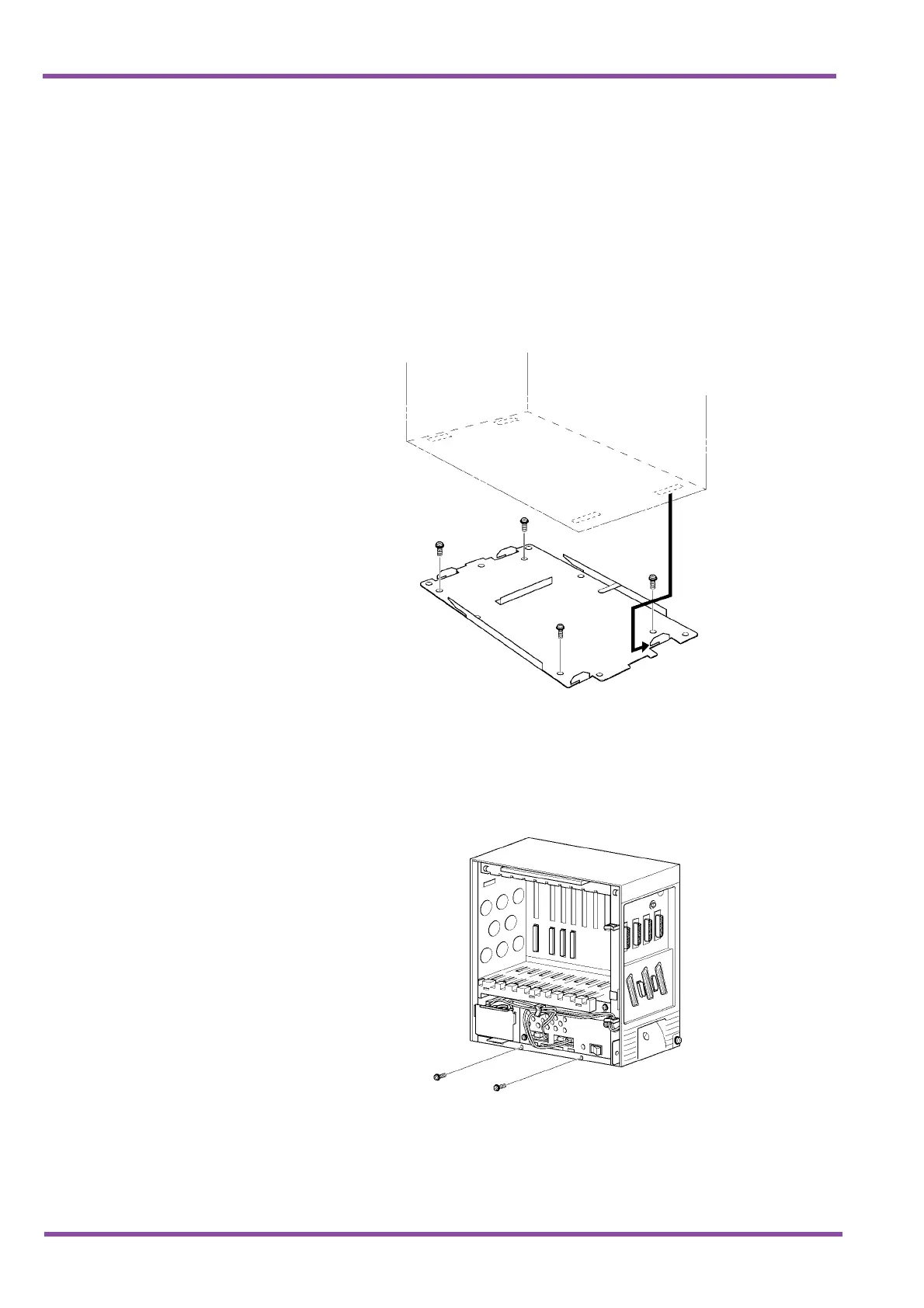

Figure 4-17 Floor Mounting the Basic KSU
Figure 4-18 Securing the KSU to the Floor Mounting Bracket
