NEC Xen Master System Hardware Manual

May 2001
System Hardware Manual 7 - 239
A6-324000-642-01 – Release 4.0 May 2001
3.10.5 Removing the Multiline Terminal from the WMU-UA Unit
To remove the Multiline Terminal from the WMU-UA Unit,
lift the Multiline Terminal to disengage top tabs and lower
the terminal from the WMU-UA Unit.
3.11 Music on Hold
The Xen Master and Xen Axis KSUs allow a Music on Hold source
to be connected to the system. Both Internal and External music
sources can be used. External Music on hold is unavailable if an
Internal Music source is used (digital music).
3.11.1 Connecting Audio Sources to the KSU
Connect the plug end into the AUDIO IN 1 jack on the side
of the Xen Master Basic KSU or into the MOH IN jack
inside the Xen Axis KSU. Refer to Figure 7-75 Music
Source Connections.

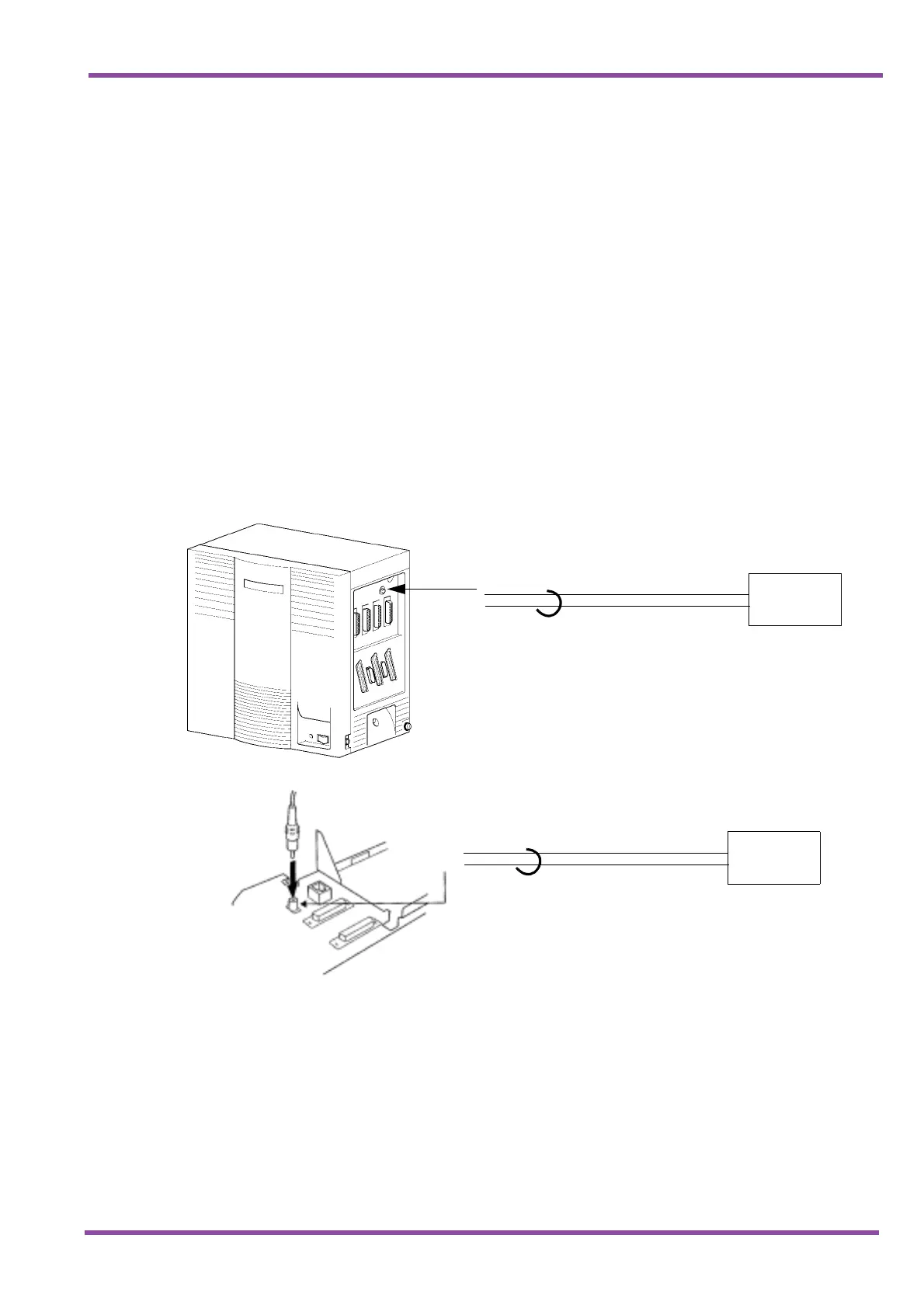

Figure 7-75 Music Source Connections
Music Source
Power
Terminal
MOH
IN
Output
AUDIO IN 1
Audio Shielded
Cable
Xen Master
Music Source
Power
Terminal
MOH
IN
Output
Audio Shielded
Cable
Xen Axis
