NEC Xen Master - Figure 4-56 Connecting the Batteries to the Power Supply Unit

May 2001
System Hardware Manual 4 - 95
A6-324000-642-01 – Release 4.0 May 2001
3. Connect the cable to the BATTERY INT connector of
the PSU as shown in Figure 4-57 Connecting Cables
for External Batteries.
4.6.2 External Battery Installation
Batteries that are purchased locally can be connected to
the system as external batteries.

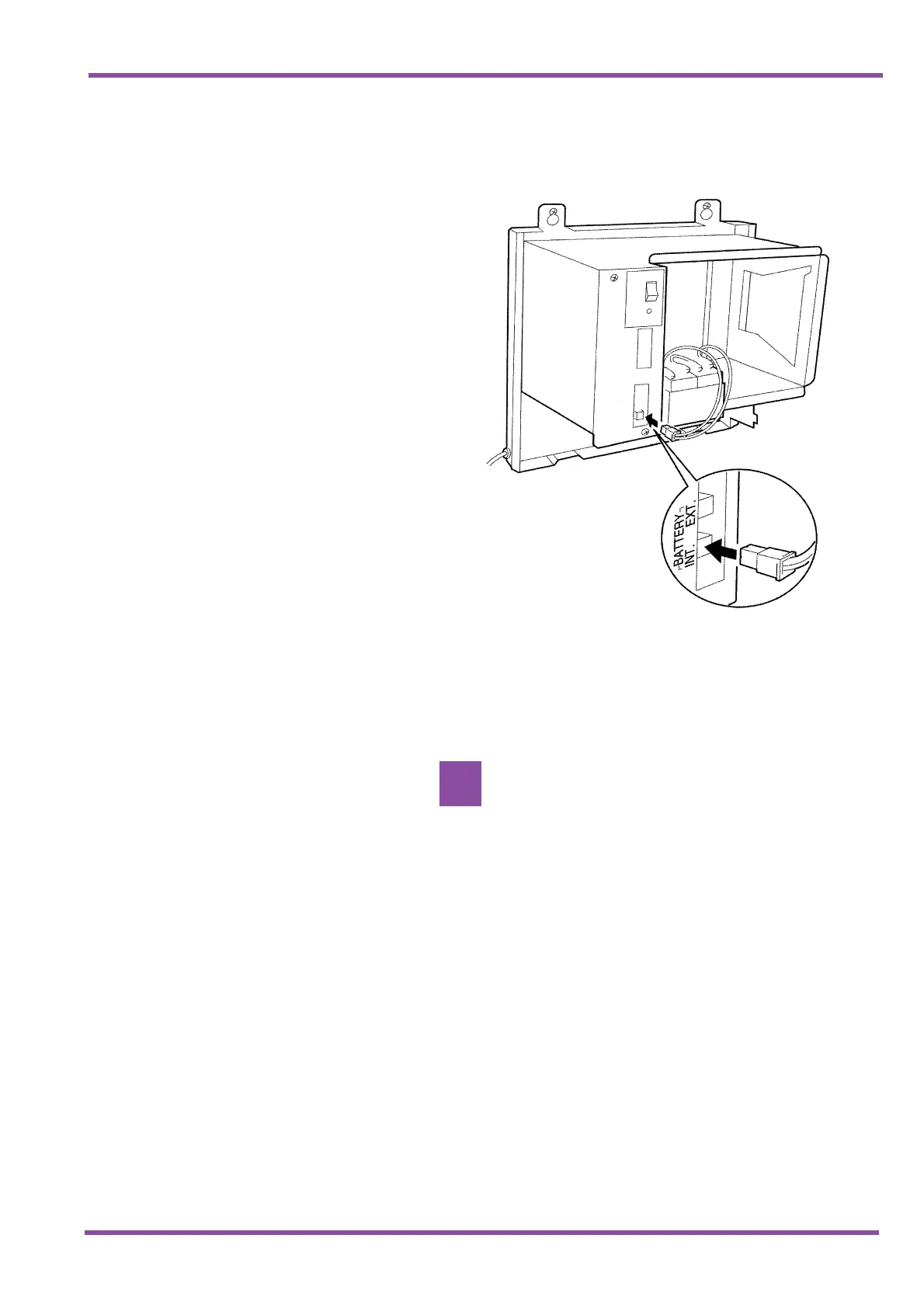

igure 4-56 Connecting the Batteries to the Power Supply Unit
When installing external batteries,
disconnect the battery cable for the built-in
batteries from the BATTERY INT connector
of the KSU. If the built-in batteries are
connected with the external batteries, a large
amount of charging current may flow from
the external batteries to the built-in batteries.
This can cause battery cable burns.
!
