R&S FSW Series User Manual

Measurements and Results
R&S
®
FSW
289User Manual 1173.9411.02 ─ 43

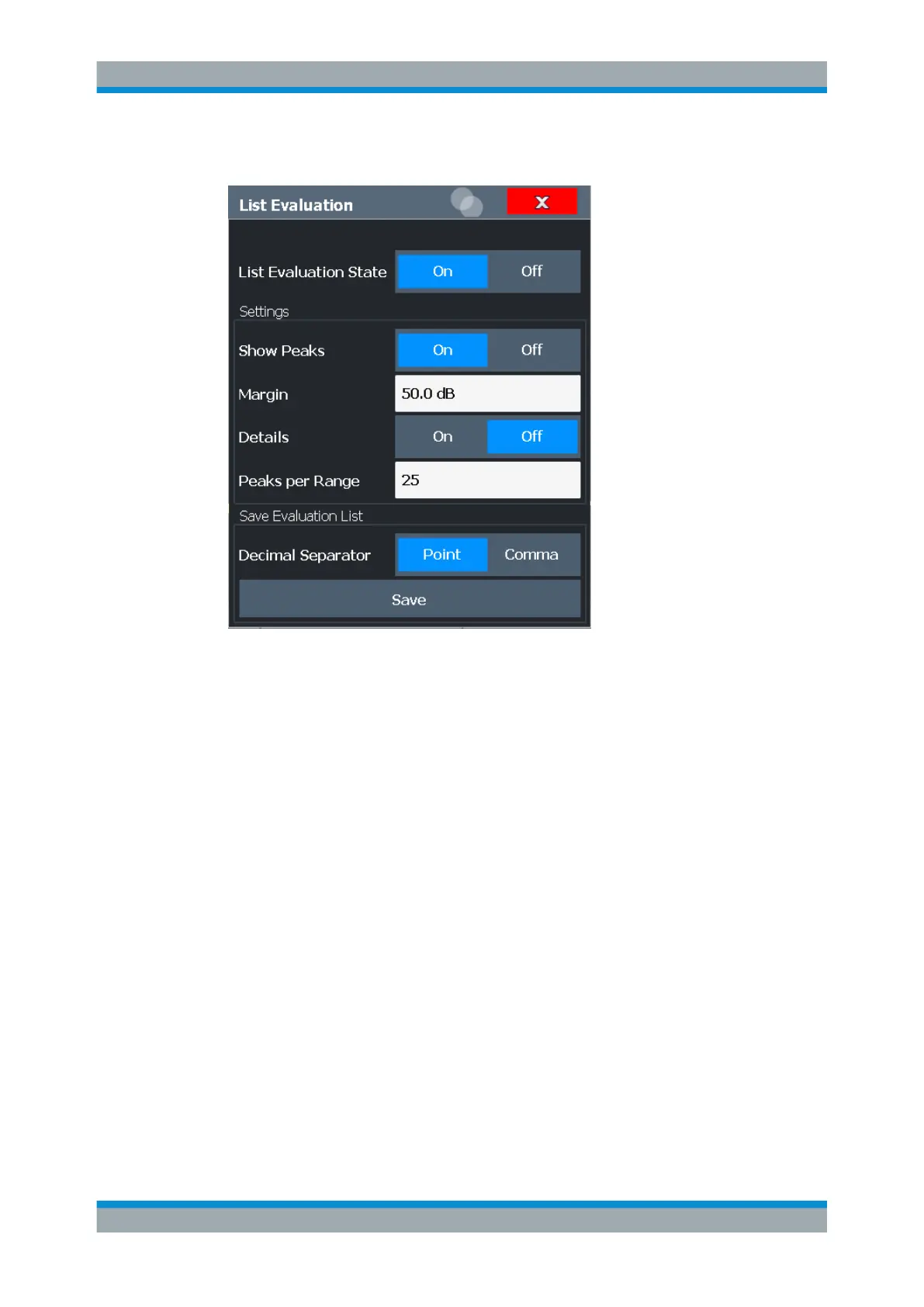

Configure the contents and display of the result list.
List Evaluation State................................................................................................... 289
Show Peaks................................................................................................................ 289
Margin......................................................................................................................... 289
Details......................................................................................................................... 290
Peaks per Range........................................................................................................ 290
Save Evaluation List....................................................................................................290
List Evaluation State
Activates or deactivates the list evaluation.
Remote command:
TRACe<n>[:DATA] on page 1143
Show Peaks
If activated, all peaks that have been detected during an active list evaluation are
marked with blue squares in the diagram.
Remote command:
CALCulate<n>:PEAKsearch:PSHow on page 963
Margin
A margin functionality is not available for the limit check. However, you can define a
margin (=threshold) for the peak values to be displayed in the evaluation list. Only
peaks that exceed the margin value are displayed (also in the diagram, if activated).
Remote command:
CALCulate<n>:PEAKsearch:MARGin on page 962
Spurious Emissions Measurement
