Common Analysis and Display Functions
R&S
®
FSW
597User Manual 1173.9411.02 ─ 43

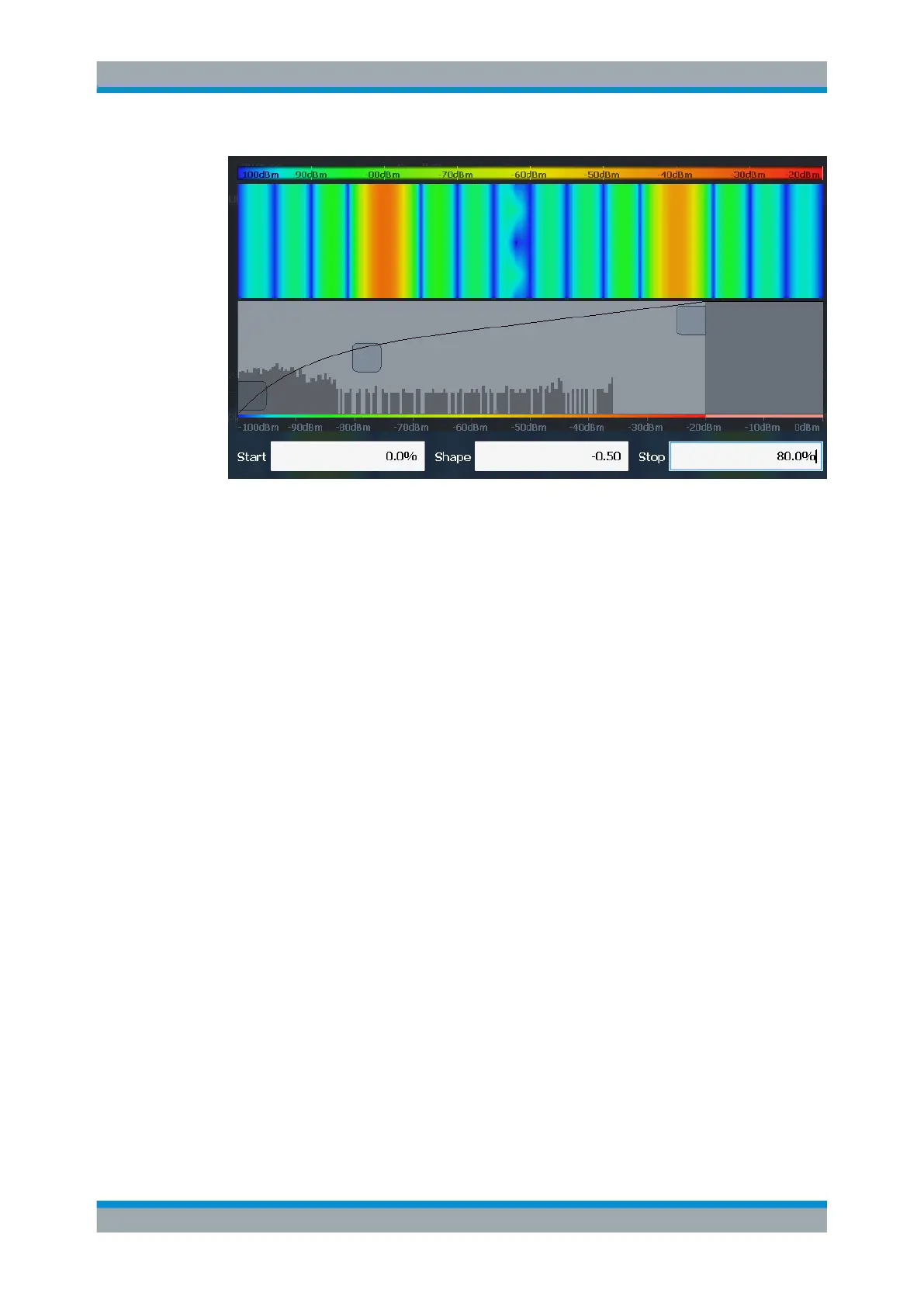

Figure 9-17: Spectrogram with non-linear color curve (shape = -0.5)
9.5.2.2 Spectrogram Settings
Access: [TRACE] > "Spectrogram Config"
The individual settings available for spectrogram display are described here. For set-
tings on color mapping, see "Color Map Settings" on page 601.
Settings concerning the frames and how they are handled during a sweep are provided
as additional sweep settings for spectrogram display.
See Chapter 8.5, "Bandwidth, Filter and Sweep Configuration", on page 459.
Search functions for spectrogram markers are described in Chapter 9.3.3.2, "Marker
Search Settings for Spectrograms", on page 526.
● General Spectrogram Settings..............................................................................597
● Color Map Settings................................................................................................601
General Spectrogram Settings
Access: [TRACE] > "Spectrogram Config"
This section describes general settings for spectrogram display.
Trace Configuration
