Selecting the Object ← Modifying User-Defined Color Assignments
Selects the object for which the color is to be defined. Colors can be defined for the
following objects:
●
Background
●
Grid
●
Individual traces
●
Display lines
●
Limit lines and check results
●
Markers and marker information
Remote command:
Each object is assigned to a specific suffix of the CMAP commands, see Chap-
ter 14.10.5.3, "CMAP Suffix Assignment", on page 1294.

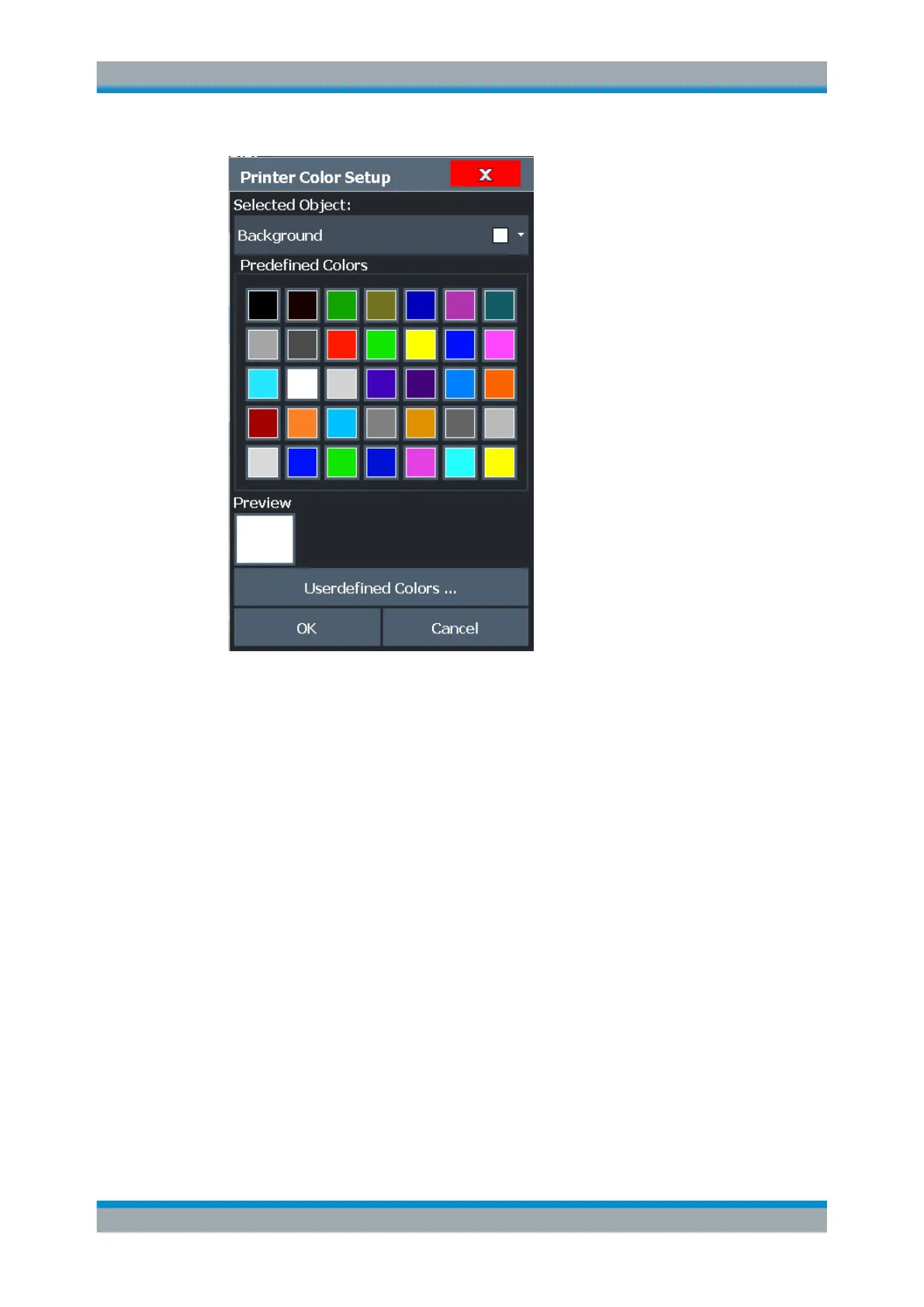

Predefined Colors ← Modifying User-Defined Color Assignments
Displays the available colors from the predefined color set that can be used for the
selected object.
Remote command:
HCOPy:CMAP<it>:PDEFined on page 1245
Preview ← Modifying User-Defined Color Assignments
Indicates the currently selected color that will be used for the selected object.
Display Settings
