NONE..........................................................................................................................715
Calibration Frequency RF........................................................................................... 715
└ Spectrum.......................................................................................................715
└ Frequency.....................................................................................................716
Calibration Frequency MW..........................................................................................716
Calibration Analog Baseband......................................................................................716
└ Calibration Signal Type.................................................................................716

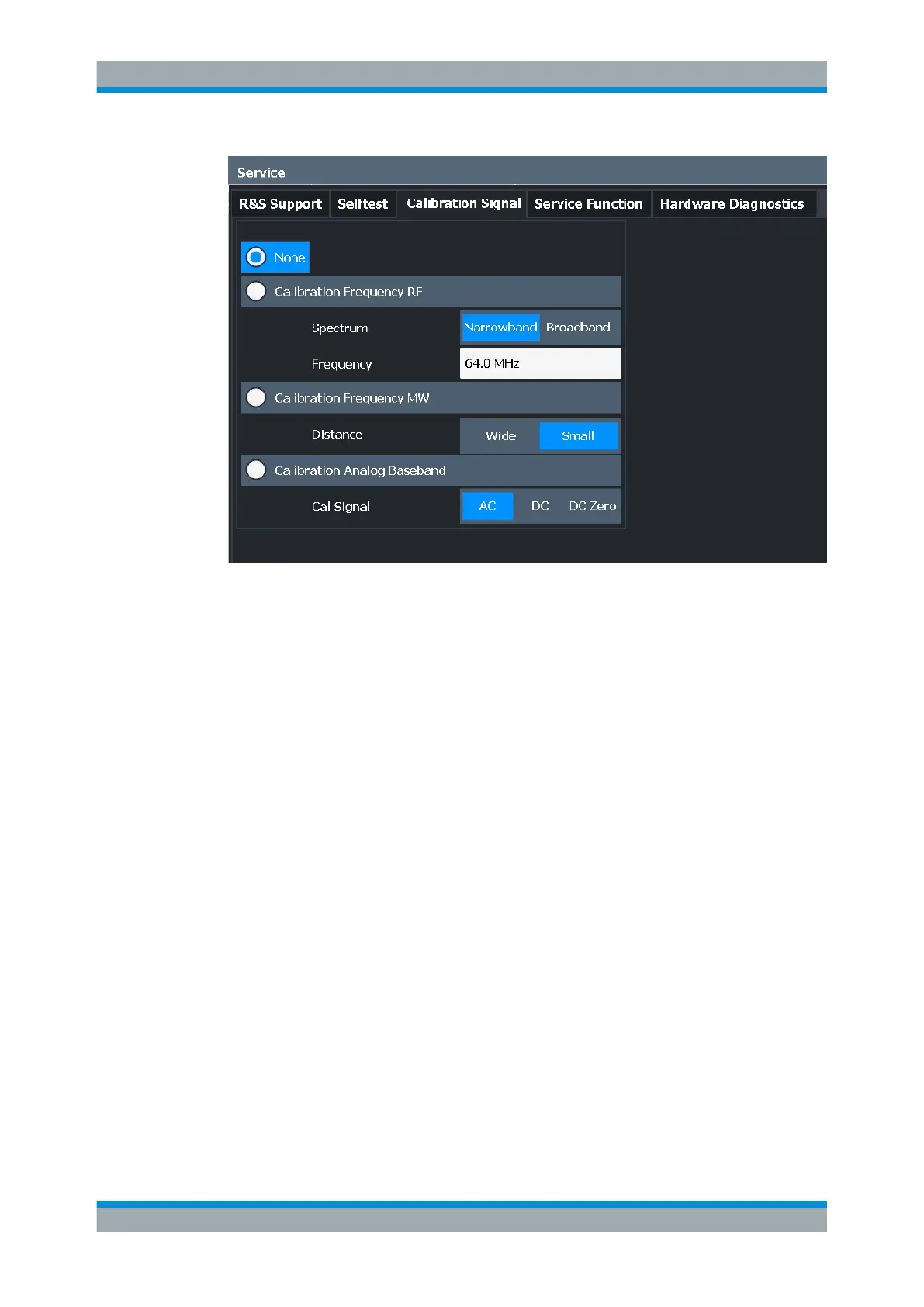

NONE
Uses the current RF signal at the input, i.e. no calibration signal (default).
Remote command:
DIAGnostic:SERVice:INPut[:SELect] on page 1266
Calibration Frequency RF
Uses the internal calibration signal as the RF input signal.
Remote command:
DIAGnostic:SERVice:INPut[:SELect] on page 1266
DIAGnostic:SERVice:INPut:PULSed:CFRequency on page 1264
Spectrum ← Calibration Frequency RF
Defines whether a broadband or narrowband calibration signal is sent to the RF input.
"Narrowband"
Used to calibrate the absolute level of the frontend at 64 MHz.
"Broadband"
Used to calibrate the IF filter.
Remote command:
DIAGnostic:SERVice:INPut:RF[:SPECtrum] on page 1265
