Ricoh IM 550F

4.Replacement and Adjustment
255

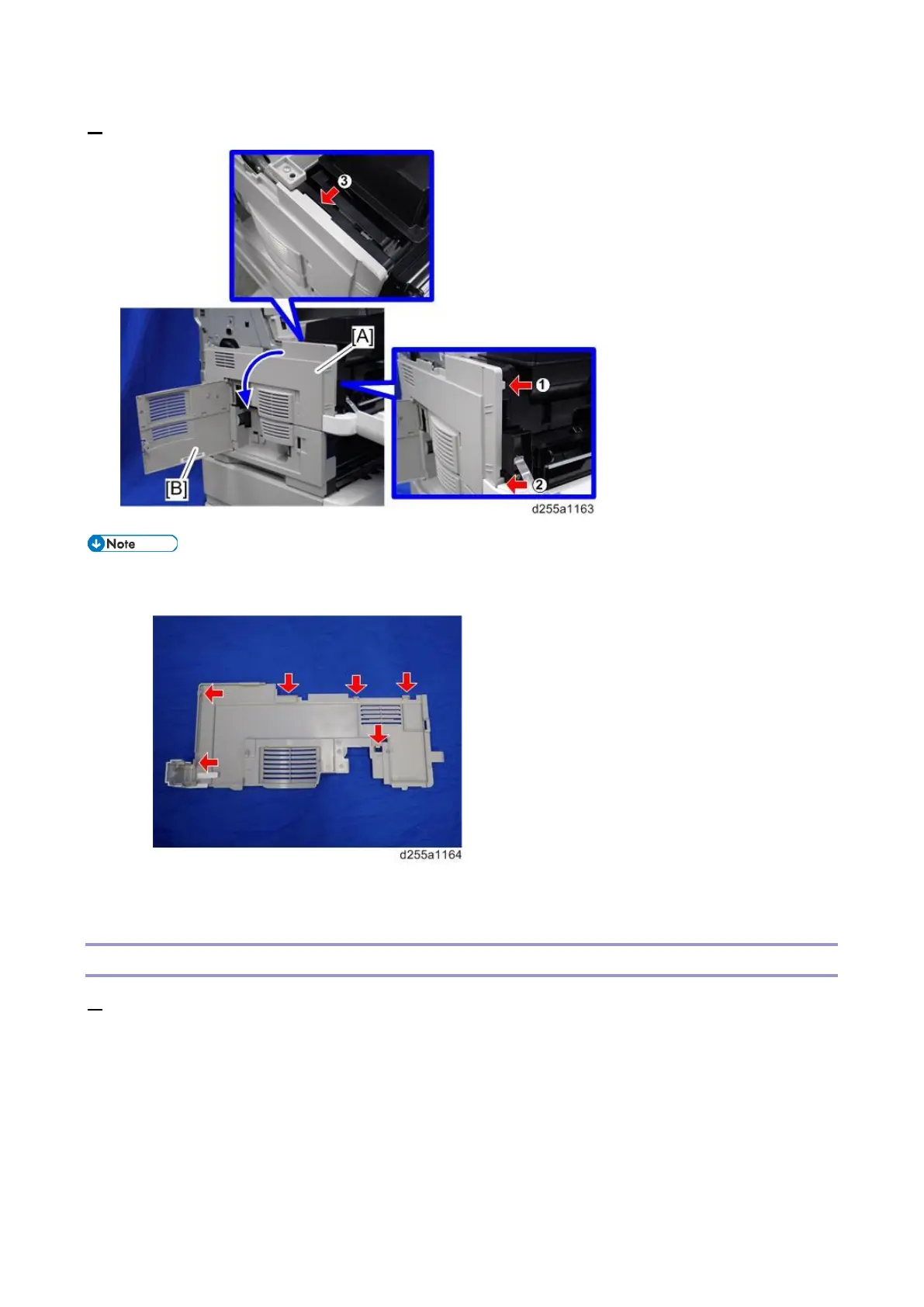

6. Remove the left middle cover [A] and waste toner bottle cover [B].
• Be careful not to damage the hooks on the inside of the left middle cover when you remove or
install the left middle cover.
Left Lower Cover
1. Remove the left middle cover. (Left Middle Cover)
