Left Rear Cover

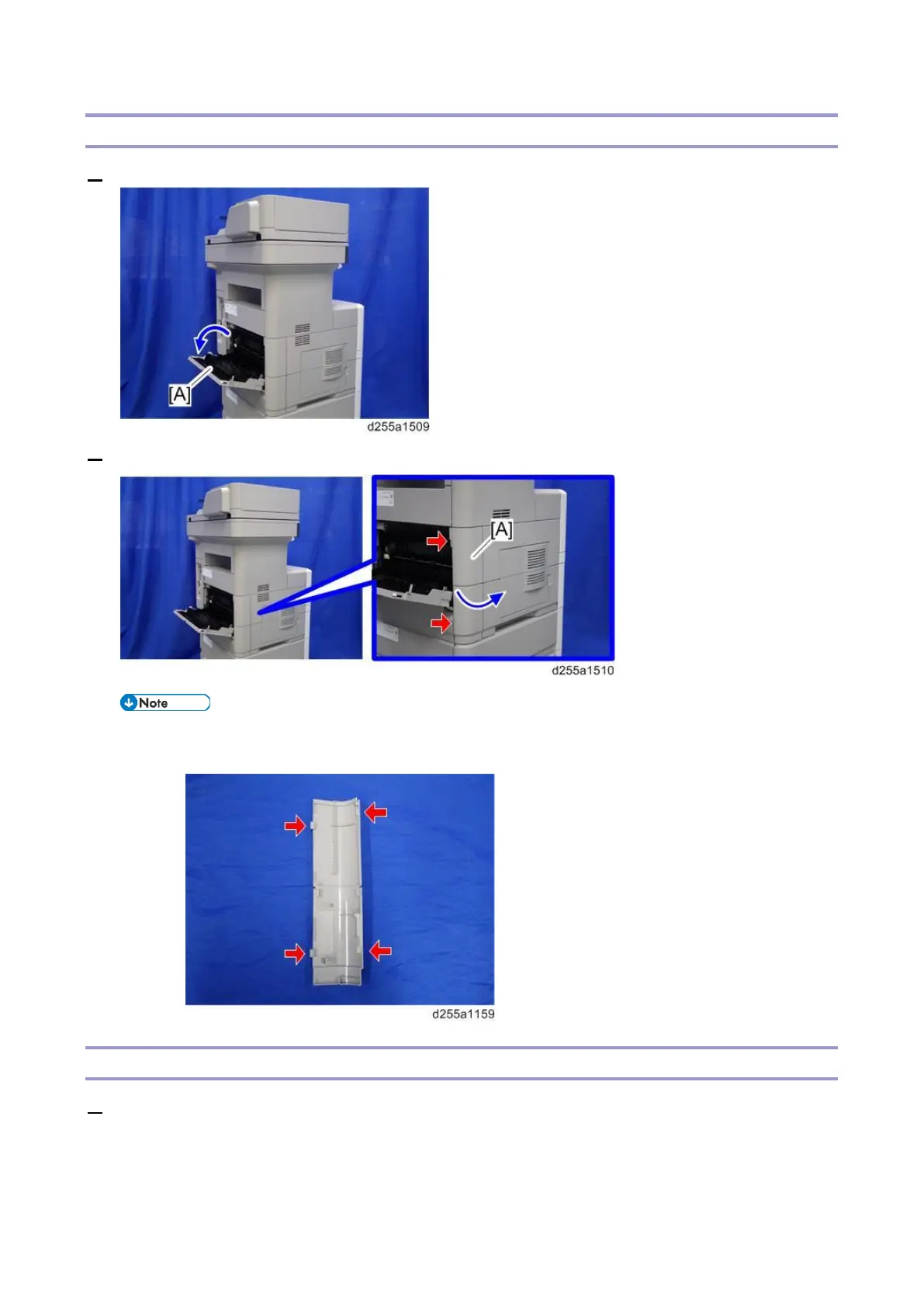

1. Open the rear upper cover [A].
2. Remove the left rear cover [A] by rotating it in the direction of the arrow. (hook×2)
• Be careful not to damage the hooks on the inside of the left rear cover when you remove
or install the left rear cover.
Rear Upper Cover
1. Remove the following covers.
• Left lower cover (Left Lower Cover)
• Rear middle cover (Rear Middle Cover)
To Next Page
