Ricoh IM 550F

7.Detailed Descriptions
655
No.
Name
No.
Name
5
Speaker (OT1)
13
Inverter solenoid (SOL1)
6
HDD (OT2)
14
Finisher pick-up solenoid (SOL3)
*1
7
Development clutch (CL5)
15
DF CIS (PCB27)
8
Duplex clutch (CL1)
16
DF paper feed clutch (CL6)
*1 IM 600SRF only.

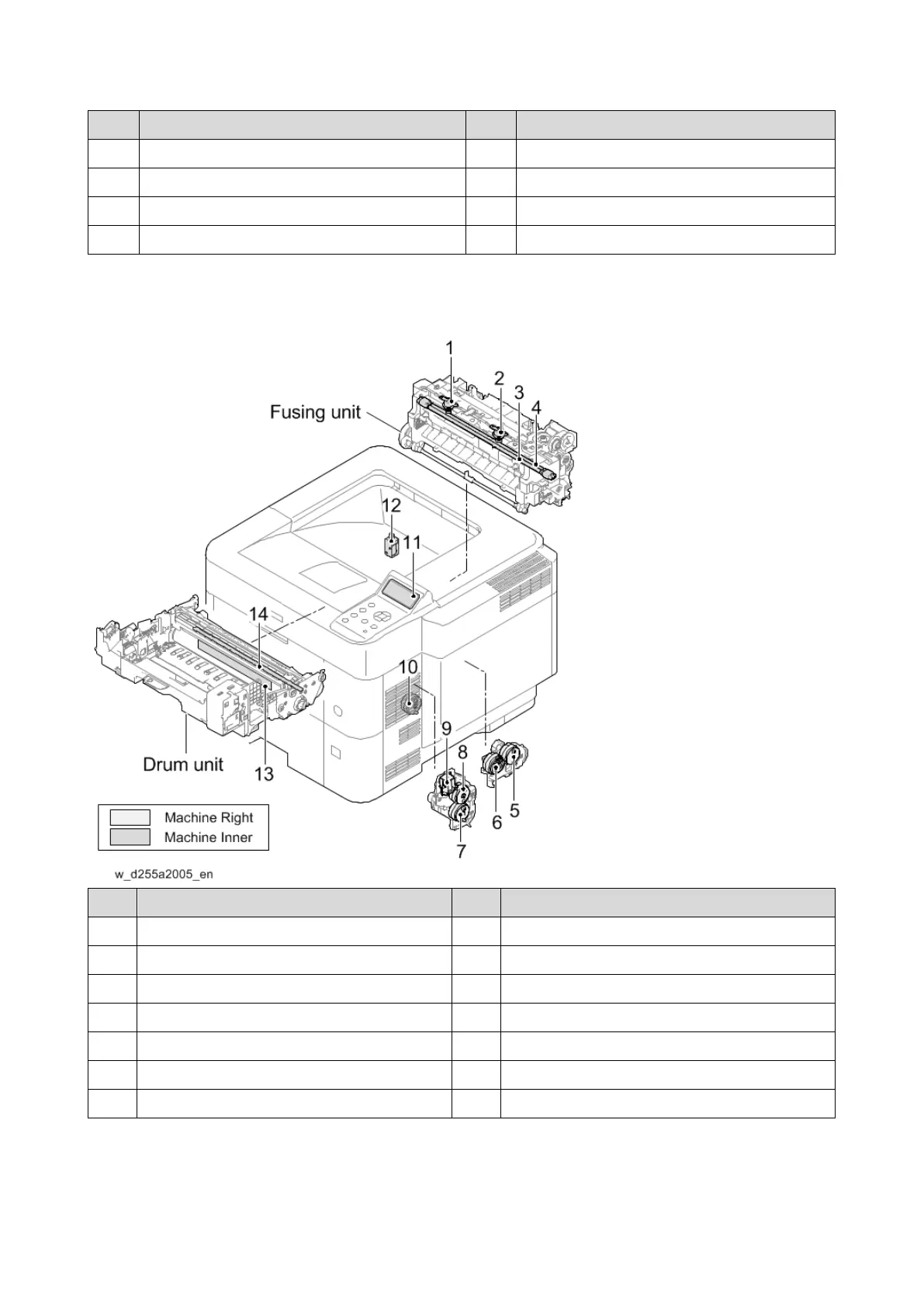

P 800/801
No.
Name
No.
Name
1
Fusing thermostat 1 (End) (TS1)
8
Transport clutch (CL2)
2
Fusing thermostat 2 (Center) (TS2)
9
Bypass solenoid (SOL2)
3
Fusing lamp 1
10
Duplex clutch (CL1)
4
Fusing lamp 2
11
Control panel
5
Development clutch (CL5)
12
Inverter solenoid (SOL1)
6
Registration clutch (CL3)
13
Drum heater PCB (AP Only) (PCB12)
7
Paper feed clutch (CL4)
14
Quenching lamp
