4.Replacement and Adjustment
305

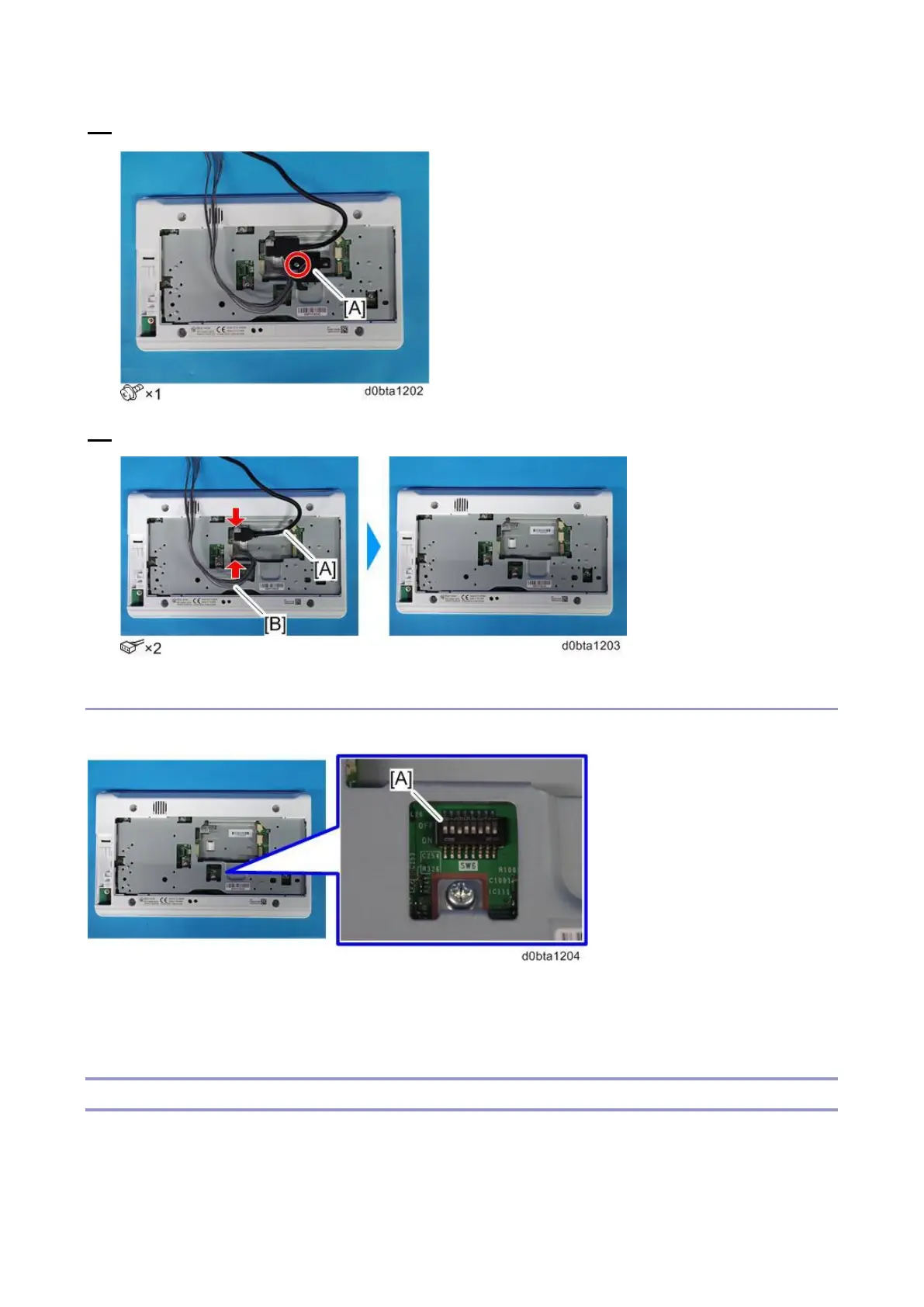

13. Remove the harness guide bracket.
14. Remove the USB cable [A] and harness [B].
Before Installing the New Operation Panel
There is a DIP switch [A] on the sub-board of the operation panel.
The switch setting to use depends on the model.
Make sure that only switch No. 1, 3, and 5 are ON. Otherwise, SC672-11 occurs when starting the
machine.
Internal Parts
Refer to Replacement and Adjustment.
