Left Upper Cover

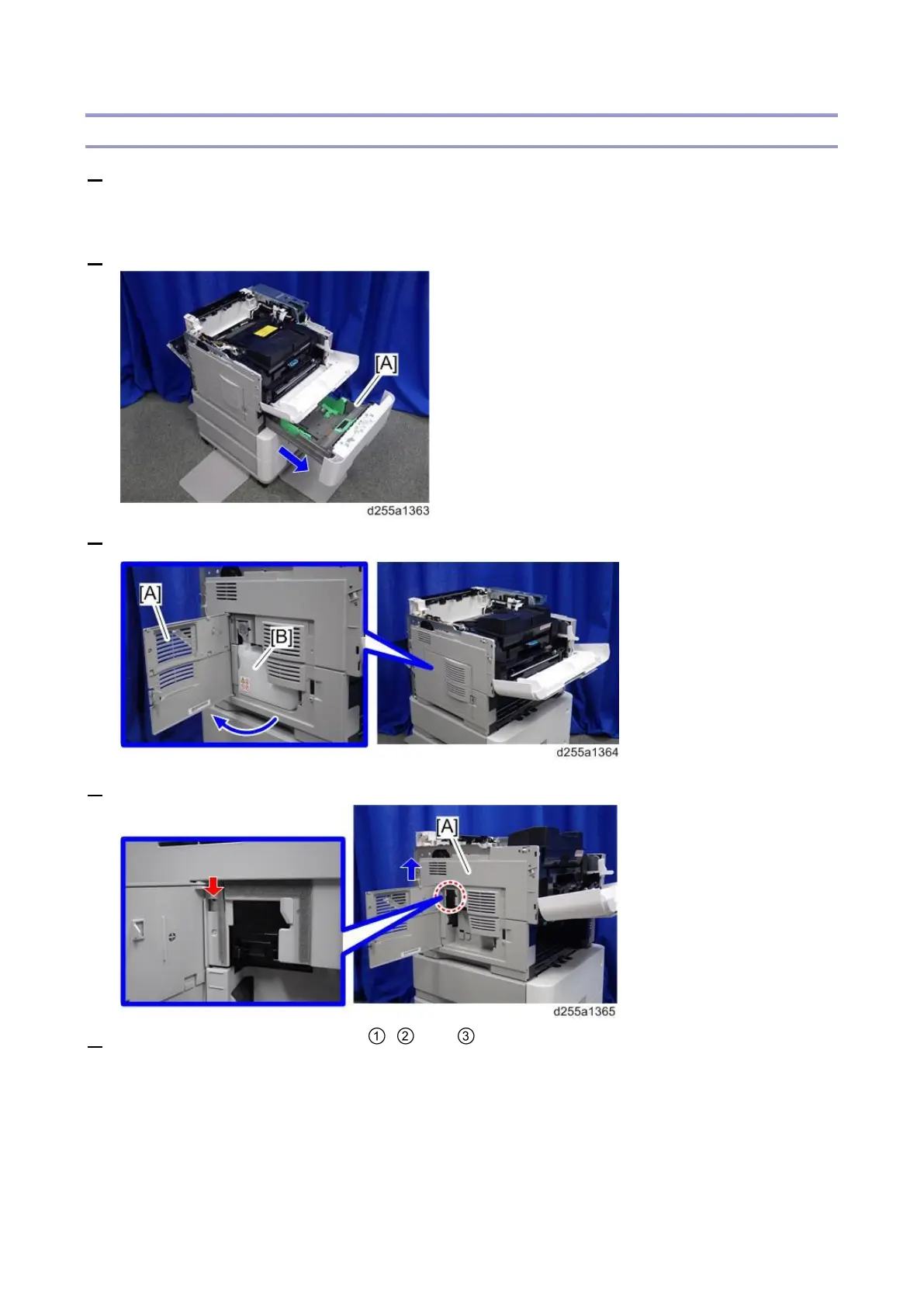

1. Remove the following covers.
• Upper cover (Upper Cover)
• Left rear cover (Left Rear Cover)
2. Remove the paper feed tray [A] by pulling it out.
3. Open the waste toner bottle cover [A], and then remove the waste toner bottle [B].
4. Release the hook by lifting the left upper cover [A] upward.
5. Release the hooks in the order of , , and .
