Ricoh IM 550F

6.Troubleshooting
610
No.
Name
No.
Name
5
Exit sensor
16
PF conveying sensor 4
*1
6
Paper full sensor
17
DF original sensor (S1)
7
Duplex sensor 1 (S16)
18
DF timing sensor
8
Duplex sensor 2 (S17)
19
DF registration sensor (S2)
9
PF paper sensor 1
*1
20
Finisher entrance Sensor
10
PF paper sensor 2
*1
21
Finisher paper exit sensor (S26)
11
PF paper sensor 3
*1
*1 Optional paper feed unit
P 800/801

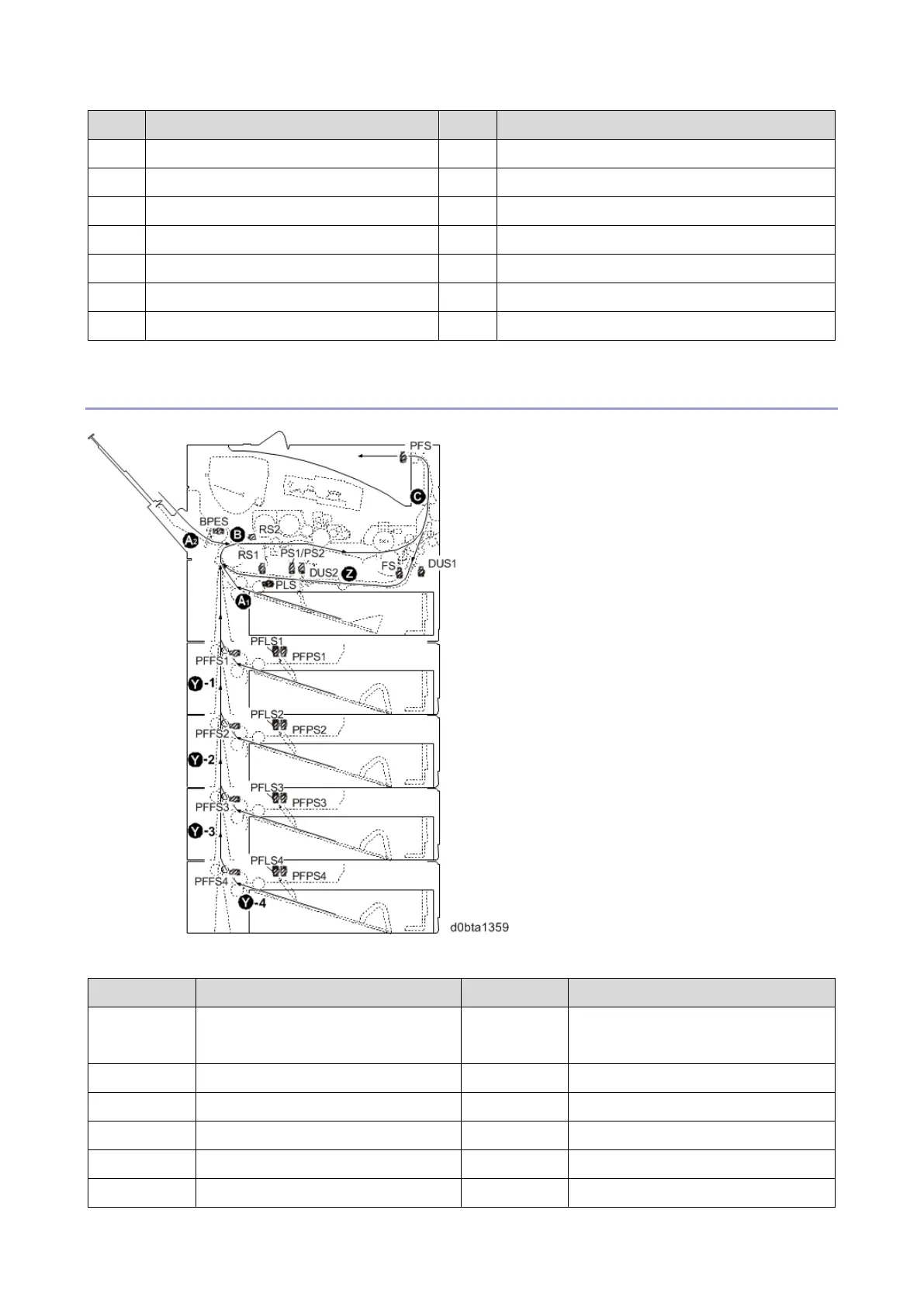

Abbreviation
Name
Abbreviation
Name
BPES
Bypass paper end sensor (S9)
PFLS4
Paper feed tray limit sensor 4
(S7)
*1
DUS1
Duplex sensor 1 (S16)
PFPS1
Paper end sensor 1 (S11)
*1
DUS2
Duplex sensor 2 (S17)
PFPS2
Paper end sensor 2 (S12)
*1
FS
Fusing sensor (S15)
PFPS3
Paper end sensor 3
*1
PFFS1
Paper feed sensor 1
*1
PFPS4
Paper end sensor 4
*1
PFFS2
Paper feed sensor 2
*1
PFS
Paper exit full sensor (S8)
