Ricoh IM 550F

4.Replacement and Adjustment
426
Internal Finisher
Internal Finisher
1. Remove the scanner unit. (Scanner Unit)
2. Remove the controller box. (Controller Box)
3. Remove the operation panel. (Operation Panel Unit (IM 550F/600F/600SRF))

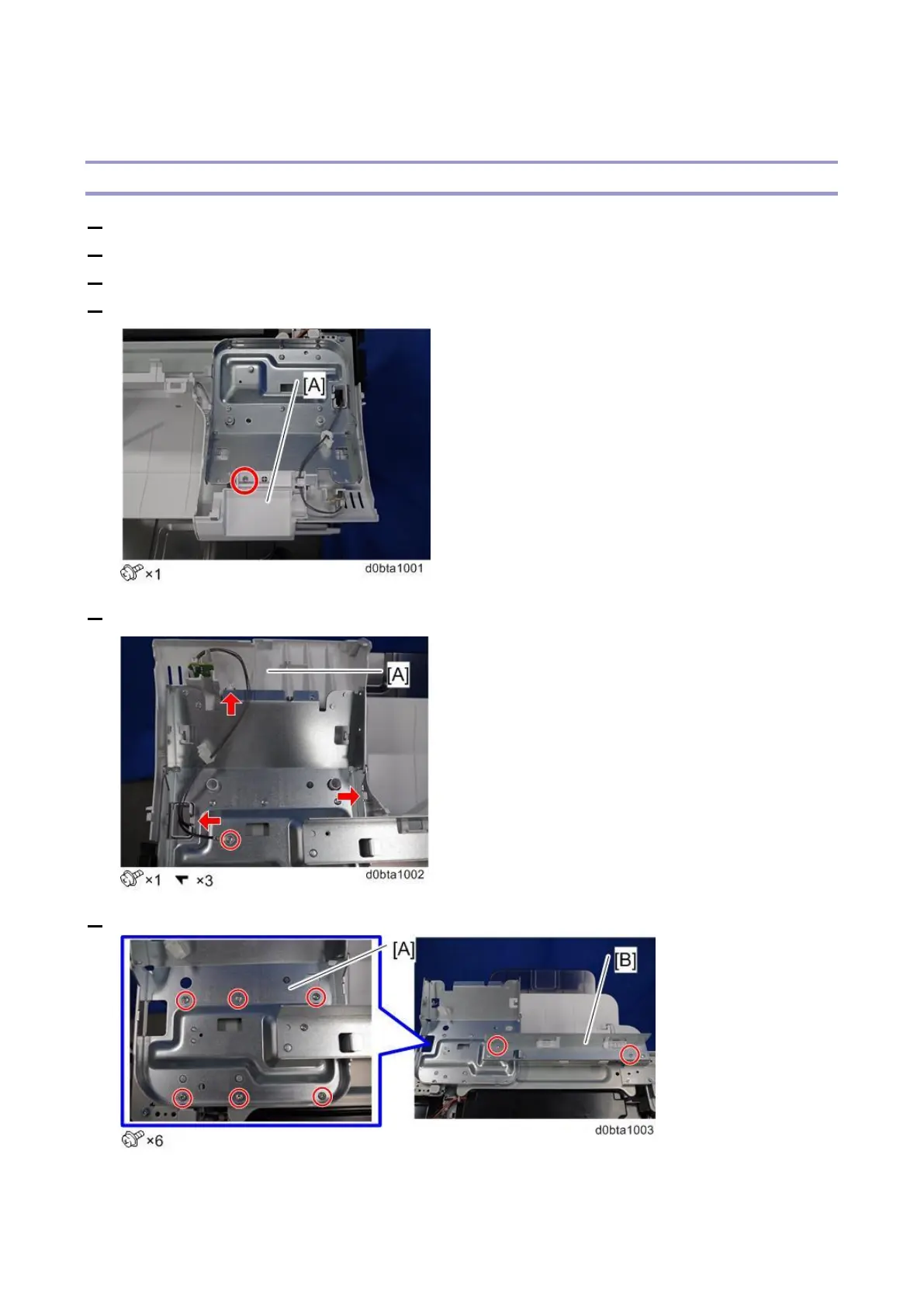

4. Remove the operation panel arm inner cover [A].
5. Remove the operation panel arm lower cover [A].
6. Remove the stays [A] and [B] together.
