4.Replacement and Adjustment
314
Laser Unit (IM 550F/600F/600SRF)
Turn OFF the main power and unplug the machine before beginning any of the procedures in
this section. Laser beams can cause serious eye injury.
Caution Decal Location

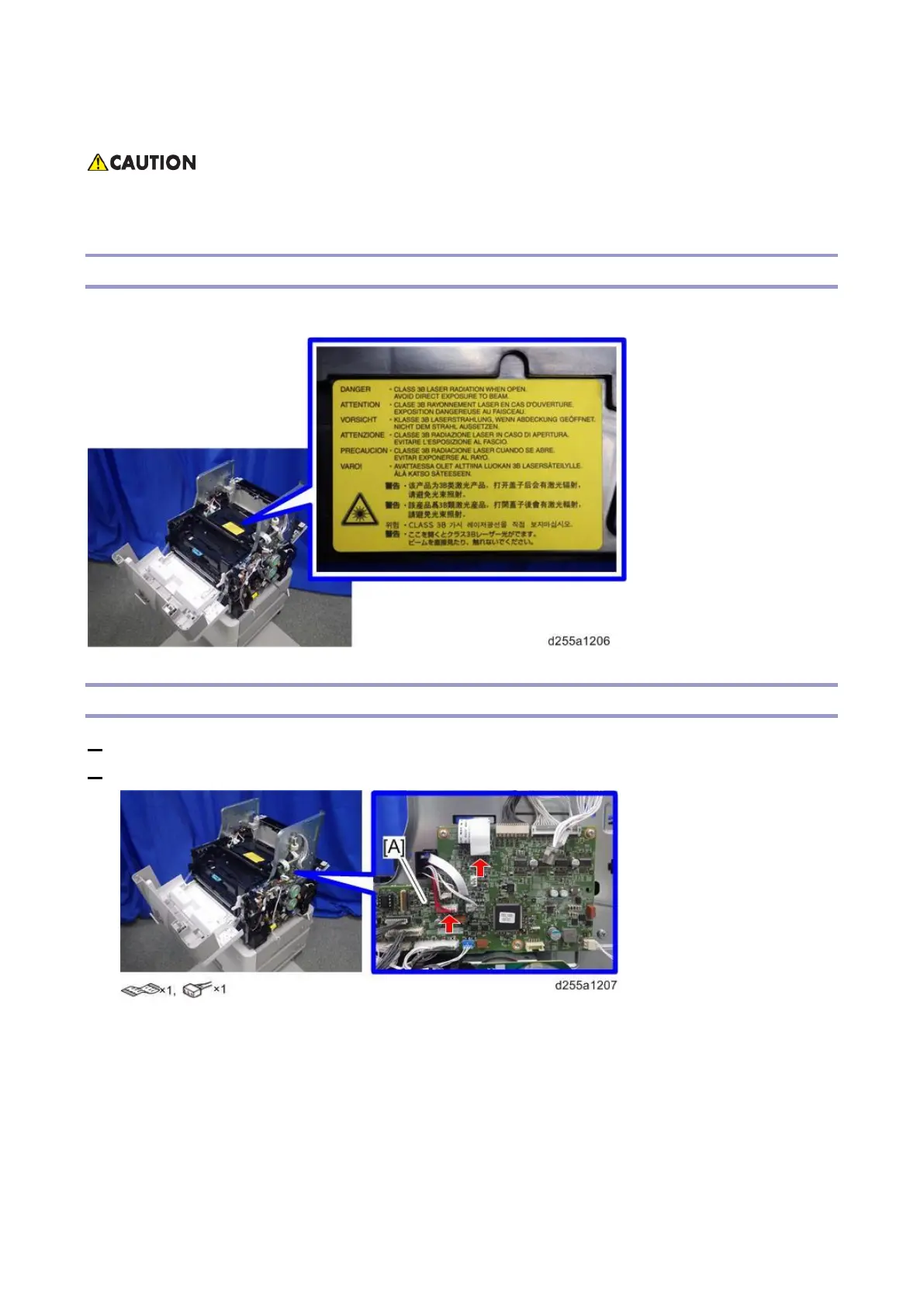

The caution decal is attached as shown below.
Laser Unit
1. Remove the paper exit tray. (Paper Exit Tray)
2. Disconnect the red connector and flat cable from IOB (PCB17) [A].

Table of Contents
