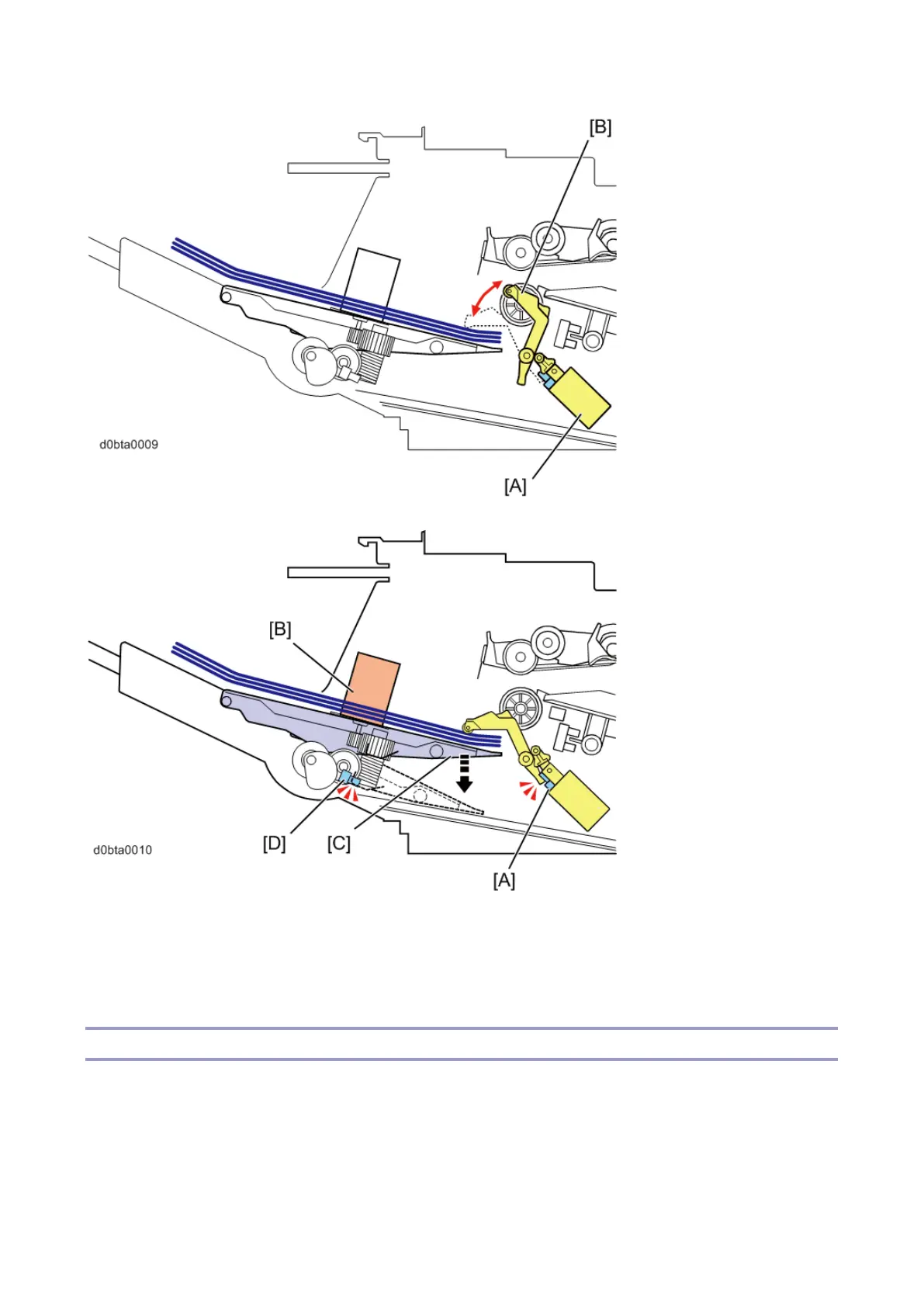

The paper sensor solenoid [A] moves the actuator [B] until it touches the top of the stack.
• When the paper sensor [A] detects the actuator, the finisher tray lift motor (M18) [B] lowers the end
of the tray [C] nearest the exit. This makes room for more paper on the tray.
• If the finisher tray lower limit sensor (S22) [D] is activated, the tray cannot be lowered any more.
Finisher Free Run
You can make a finisher free run with the following SPs. No paper is required when executing these
SPs.
• SP6-137-001: Free Run 1 (Shift mode)
• SP6-137-002: Free Run 2 (Staple mode)
• SP6-137-003: Free Run 3 (Packing mode: Output tray descends to the lowest position.)
