Ricoh IM 550F

4.Replacement and Adjustment
292

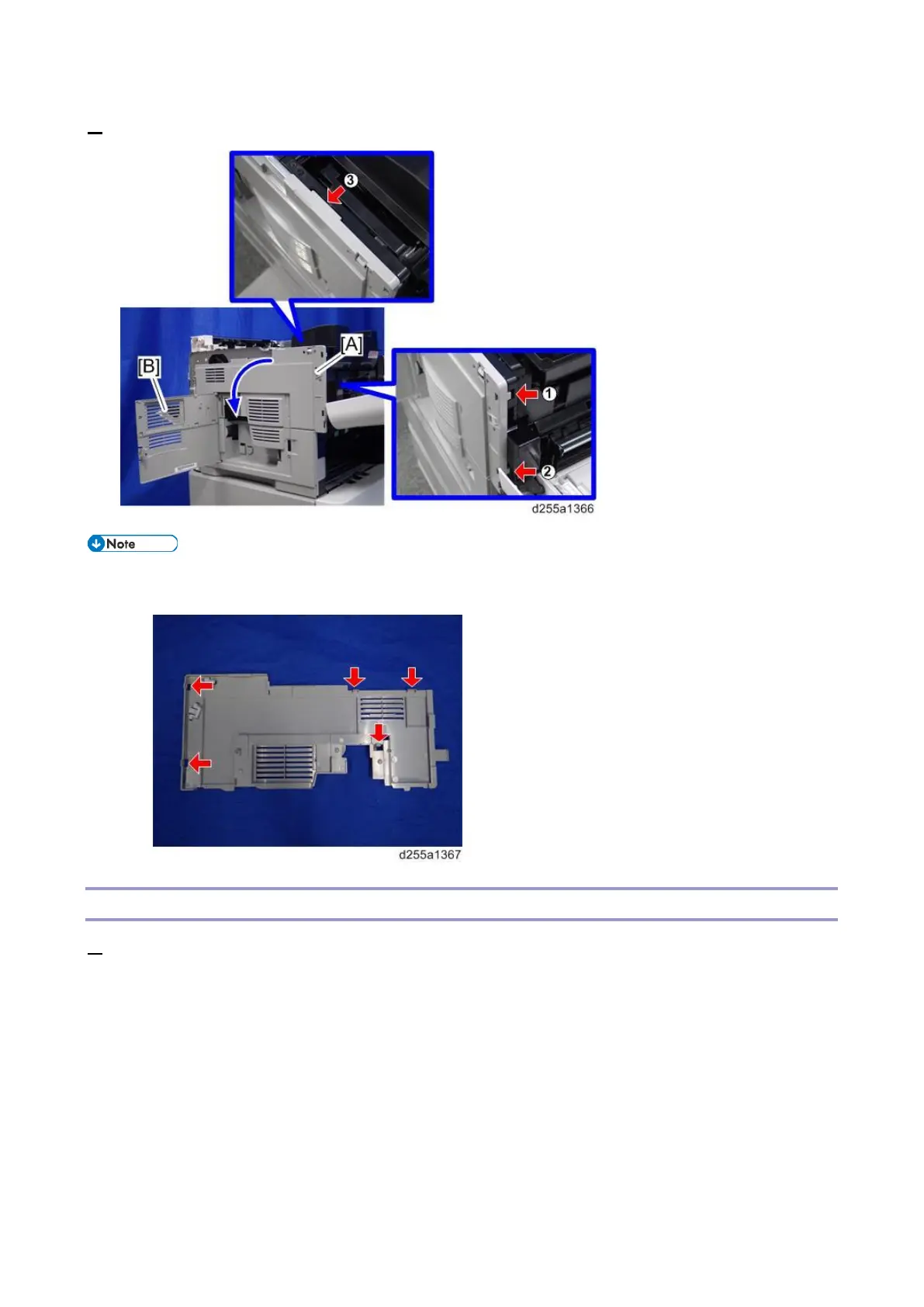

6. Remove the left upper cover [A] and waste toner bottle cover [B].
• Be careful not to damage the hooks on the inside of the left upper cover when you remove or
install the left upper cover.
Left Lower Cover
1. Remove the left upper cover. (Left Upper Cover)
