4.Replacement and Adjustment
418

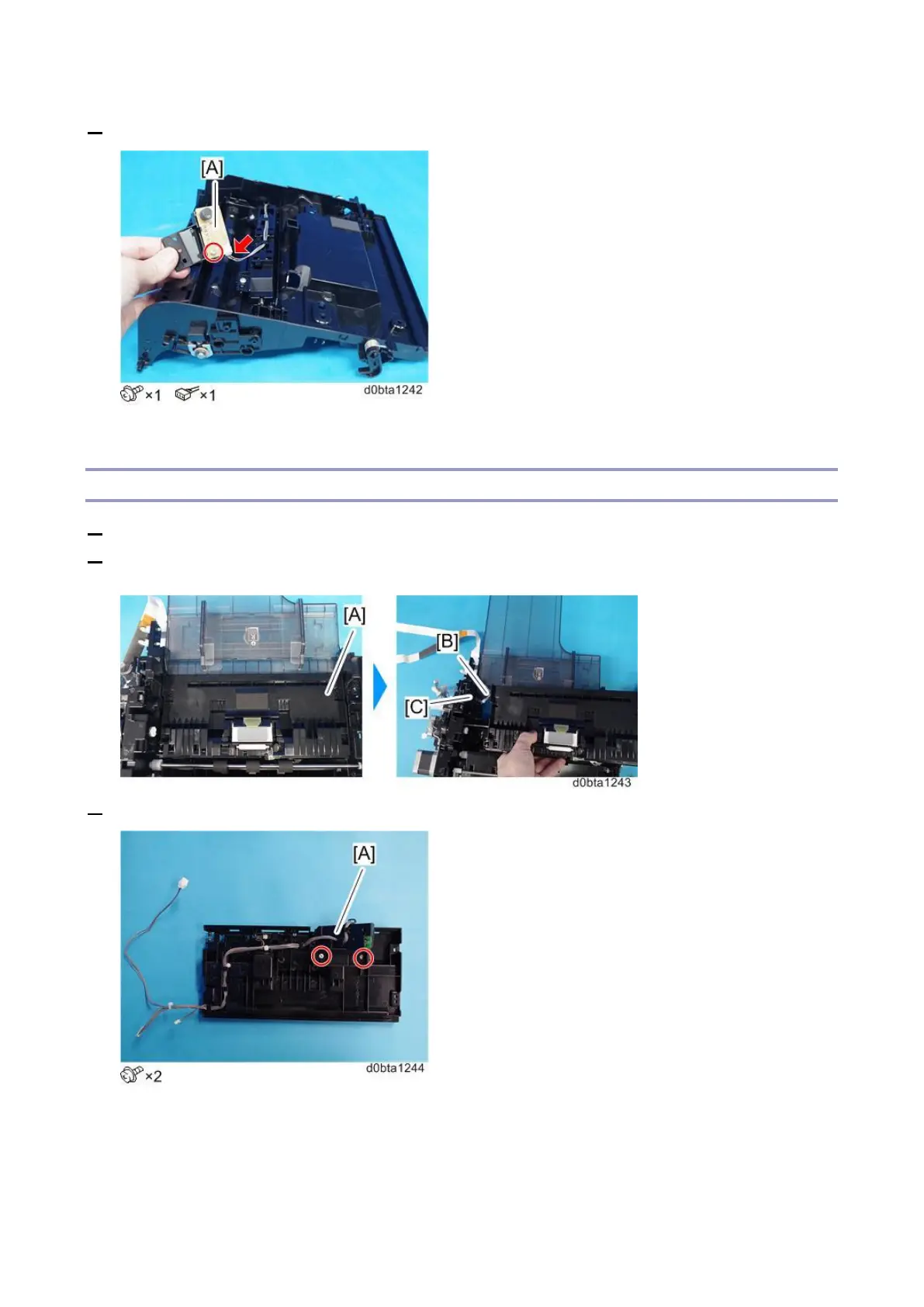

3. Remove the DF double feed detector TX PCB (PCB25) [A].
DF double feed detector RX PCB (PCB26)
1. Remove the CIS assembly. (CIS)
2. Remove the conveying guide [A].
Pull out the harness [B] through the hole [C].
3. Remove the bracket [A].
To Next Page
