Ricoh IM 550F

4.Replacement and Adjustment
261

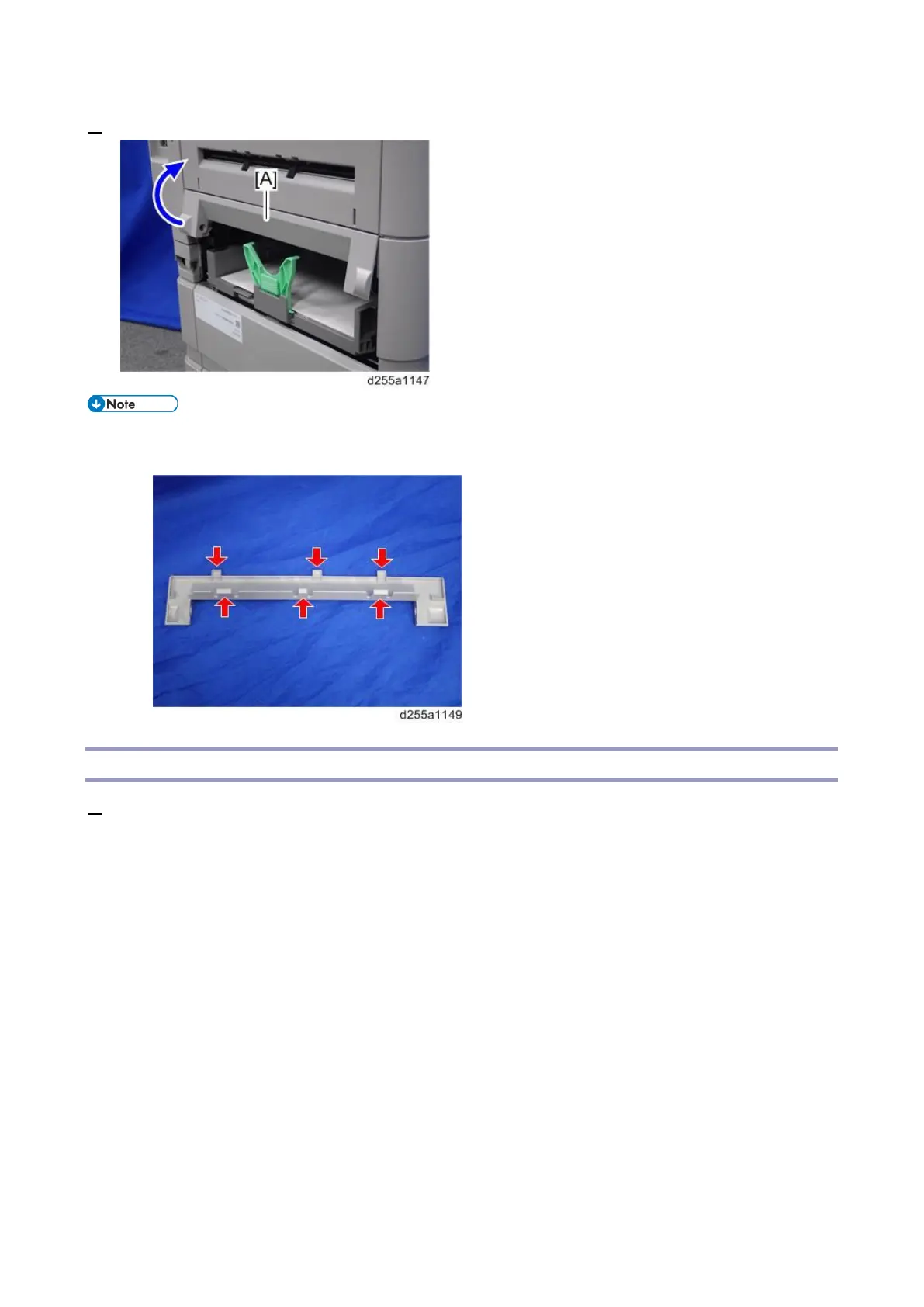

3. Remove the rear middle cover [A] by rotating in the direction of the arrow.
• Be careful not to damage the hooks on the inside of the rear middle cover when you remove or
install the rear middle cover.
Rear Lower Cover
1. Release the right hinge [A] of the rear lower cover [B] by pushing the rear lower cover inward with a
