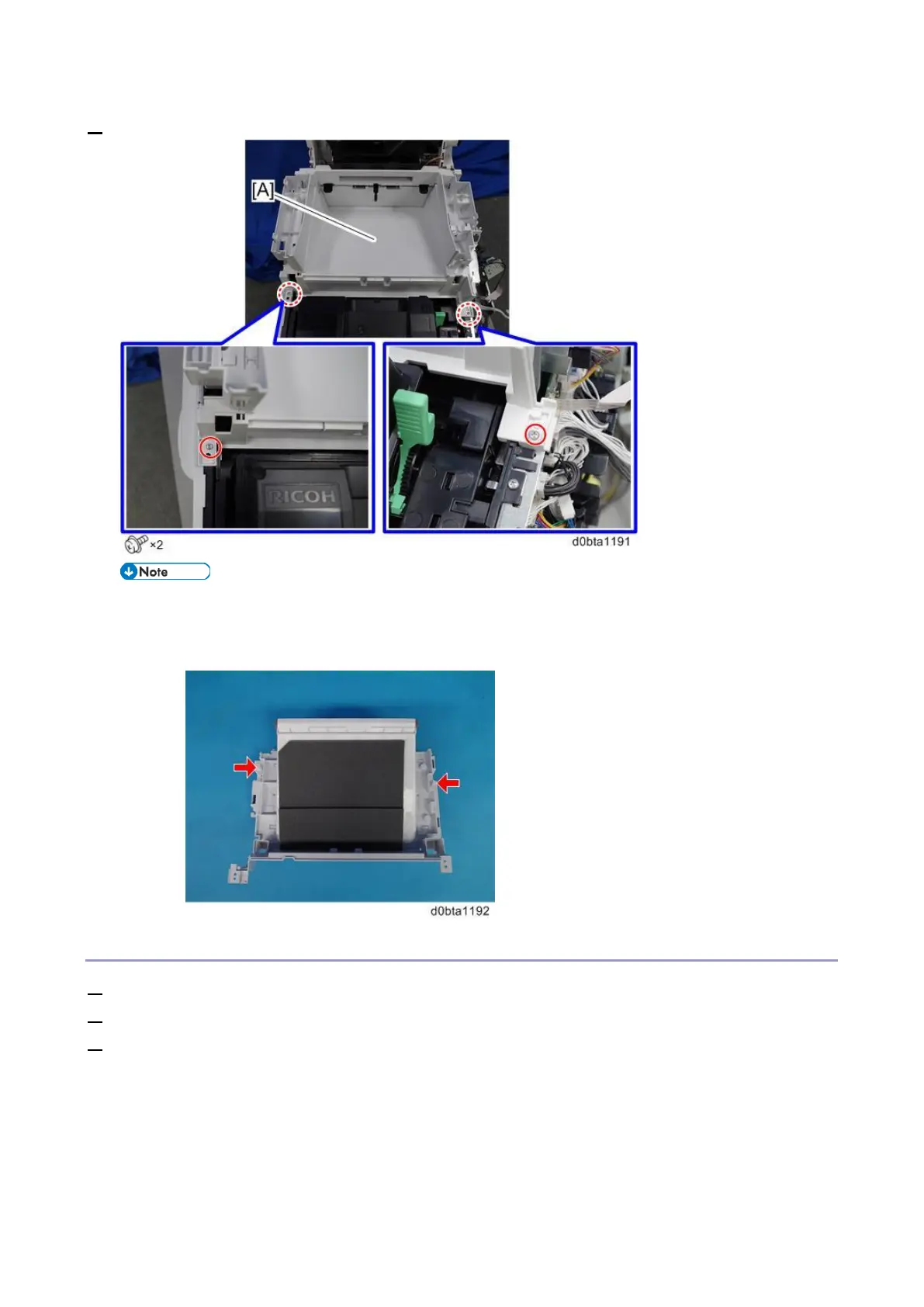

9. Remove the paper exit tray [A].
• The screw [B] is a sems screw. Be careful not to use the wrong screw when installing the
paper exit tray.
• Be careful not to damage the hooks on the paper exit tray when removing or installing.
Paper Exit Tray (IM 550F/600F)
1. Remove the scanner unit. (Scanner Unit)
2. Remove the controller box. (Controller Box (IM 550F/600F/600SRF))
3. Remove the following covers.
• Left lower cover (Left Lower Cover)
• Paper exit cover (Paper Exit Cover (IM 550F/600F Only))
