Finisher Entrance Roller
17
Finisher Tray Lower Limit Sensor (S22)
9

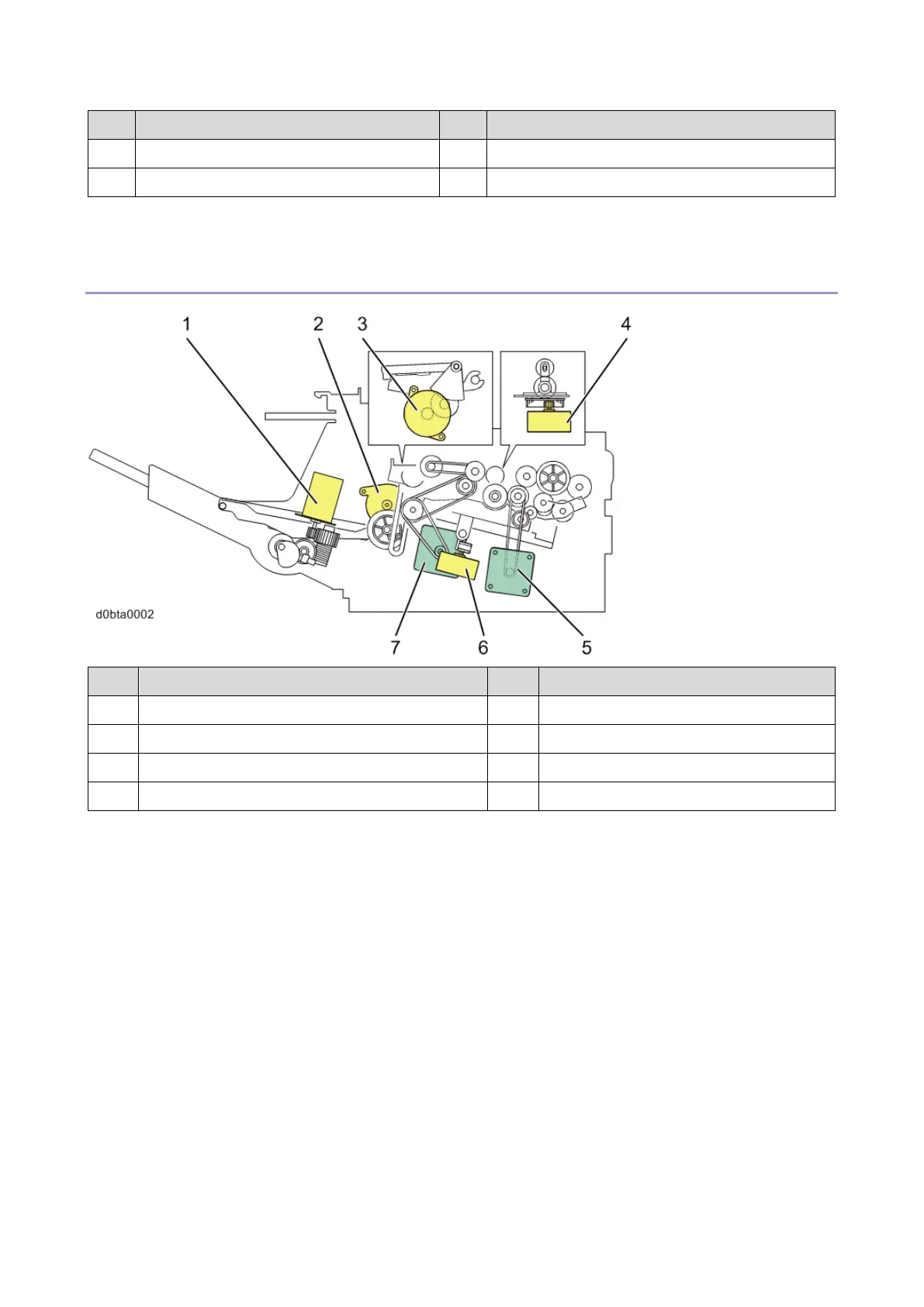

Finisher Staple Tray
Drive Layout
No.
Name
No.
Name
1
Finisher Tray Lift Motor (M18)
5
Finisher Transport Motor (M12)
2
Finisher Gathering Roller Motor (M14)
6
Finisher Jogger Motor (M16)
3
Finisher Exit Guide Plate Motor (M17)
7
Finisher Paper Exit Motor (M13)
4
Finisher Shift Roller Motor (M15)
