8.Smart Operation Panel G2.5
734

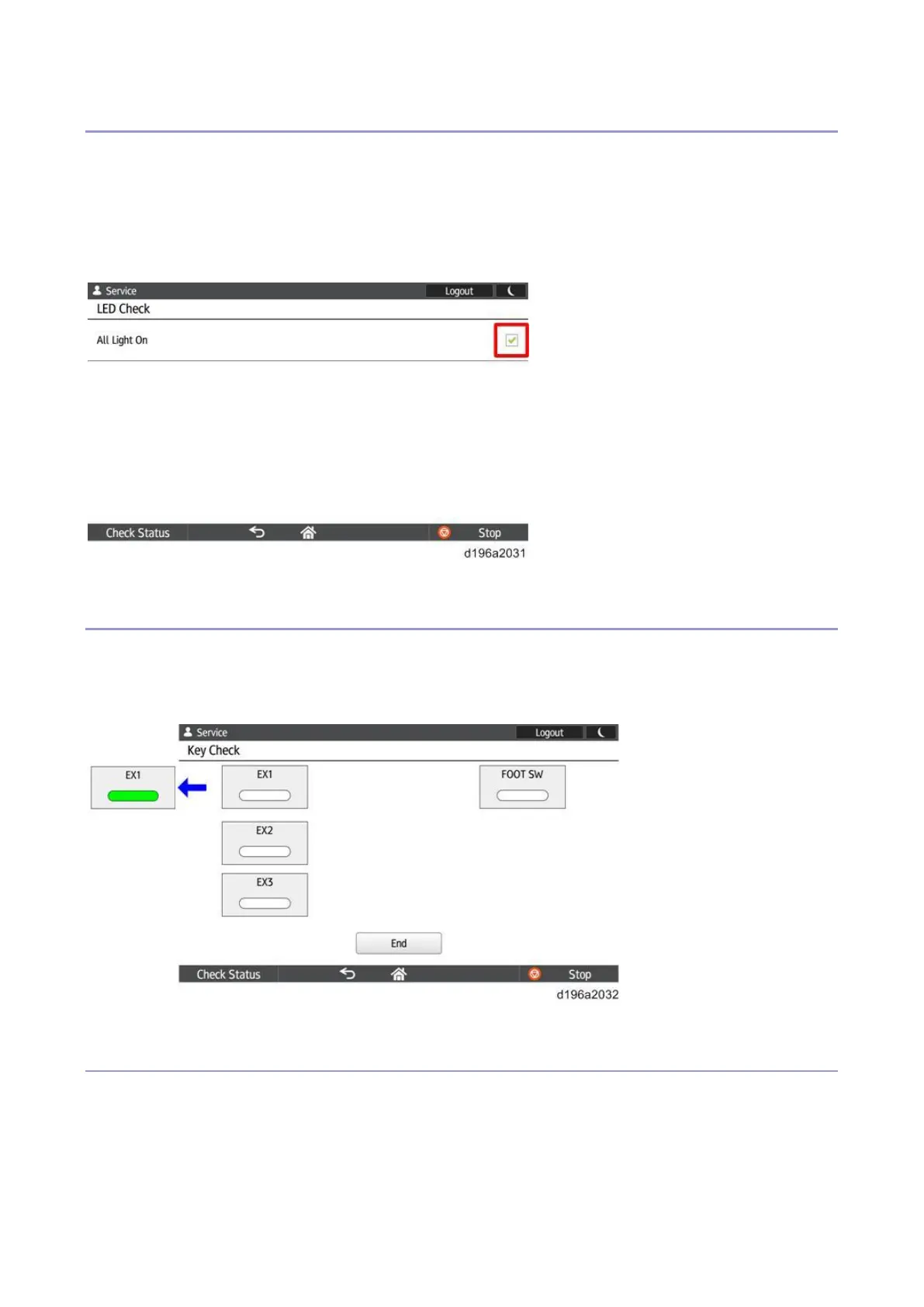

LED Check
Select the [All Light On] checkbox, and make sure the following LEDs light:
• Data In indicator (facsimile and printer modes)
• Fax indicator
• [Check Status] indicator (flashes in red and orange alternately)
• Operation call light (if attached) (lights in red/blue)
When the check is completed, press [Back] to return to the top menu of [Self Check].
Key Check
Check if the Extended Feature keys on the left side of the control panel (EX1, EX2, EX3 from top to
bottom) are functioning normally. If they are functioning normally, the key will turn green when pressed.
[FOOT SW] is not used.
When the check is completed, press [End] to return to the top menu of [Self Check].
LCD Check
Visually inspect the color of the LCD. The displayed colors are white/black/red/green/blue. The LCD
changes to the next color when you press it.
