Ricoh IM 550F

8.Smart Operation Panel G2.5
699
8. Smart Operation Panel G2.5
Replacement and Adjustment

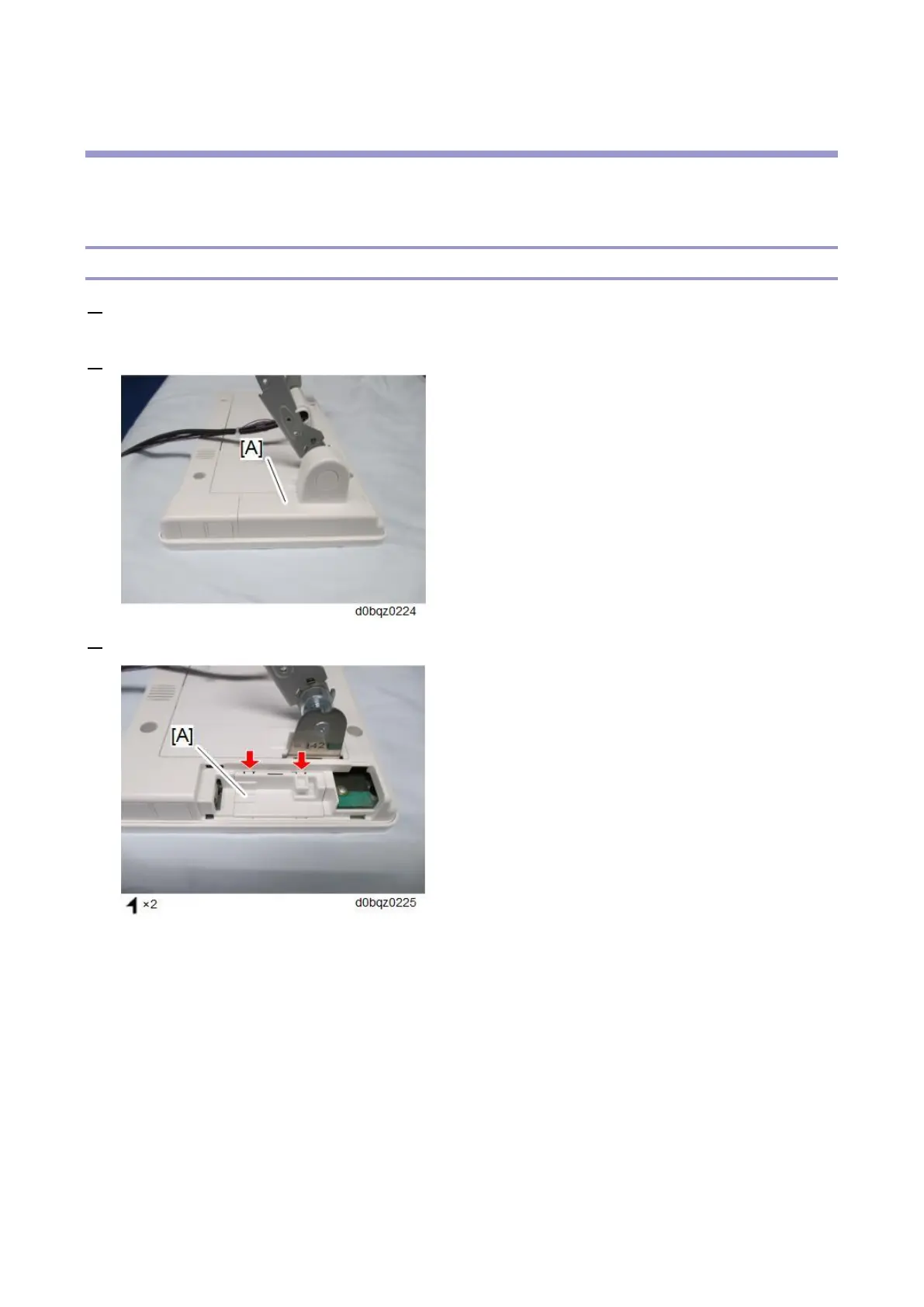

NFC Board
1. Remove the operation panel unit. (Refer to "Operation Panel (PCB13)", "Replacement and
Adjustment" in Main Chapters.)
2. Remove the hinge cover [A].
3. Remove the cover of the NFC board [A].
