Ricoh IM 550F

2.Installation
50
unit with the tapping bind screw (3×8).
9. Put back the paper feed trays.

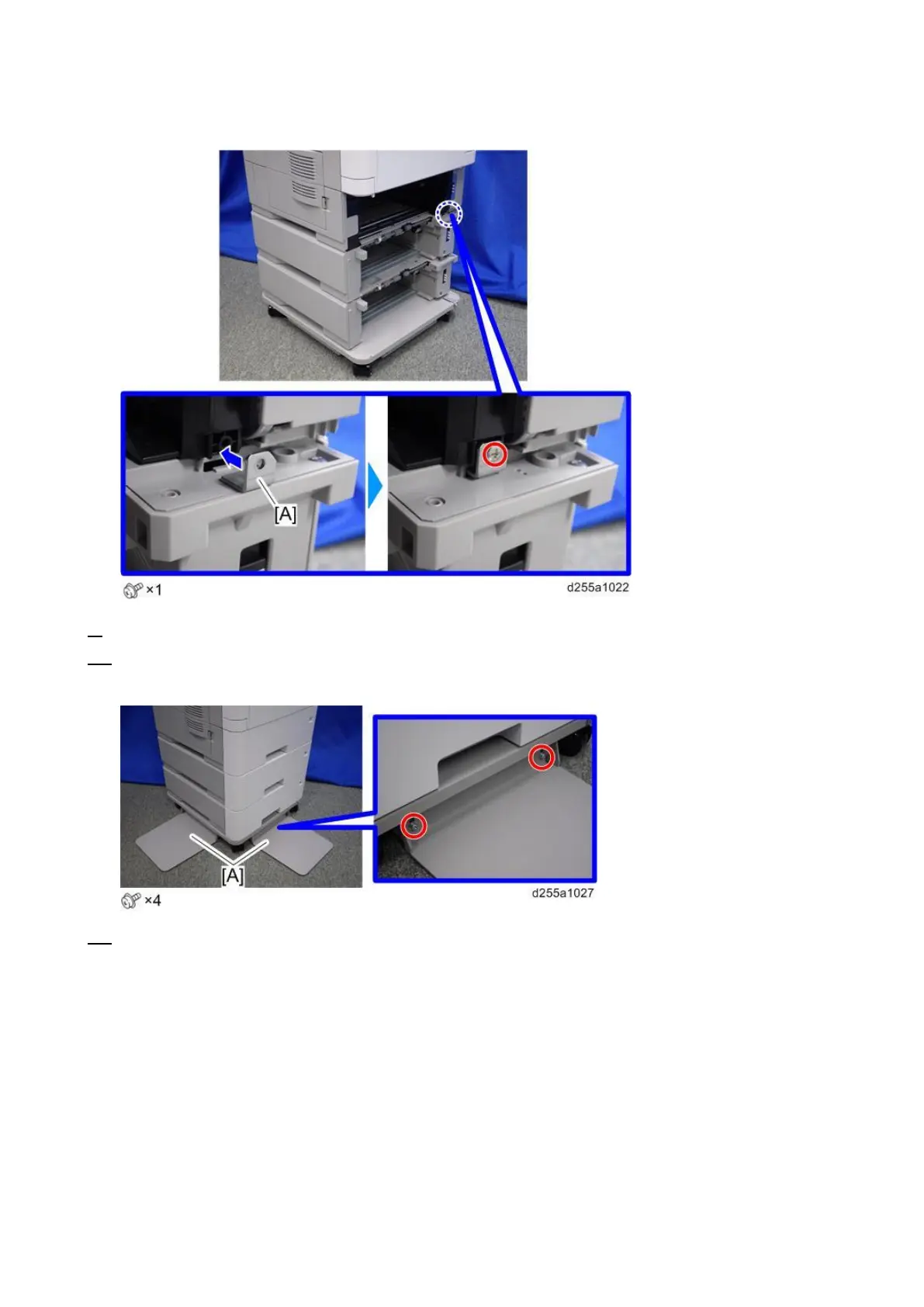

10. Attach the two stands [A] provided with the caster table on the front and left sides with the screws
(polished round/spring (M4×10)).
11. Attach the two stands [A] provided with the caster table on the rear and right sides with the screws
