Section 08 ENGINE MANAGEMENT (4-TEC)
Subsection 02 (COMPONENT INSPECTION AND ADJUSTMENT)
2
R1503motr269A
1

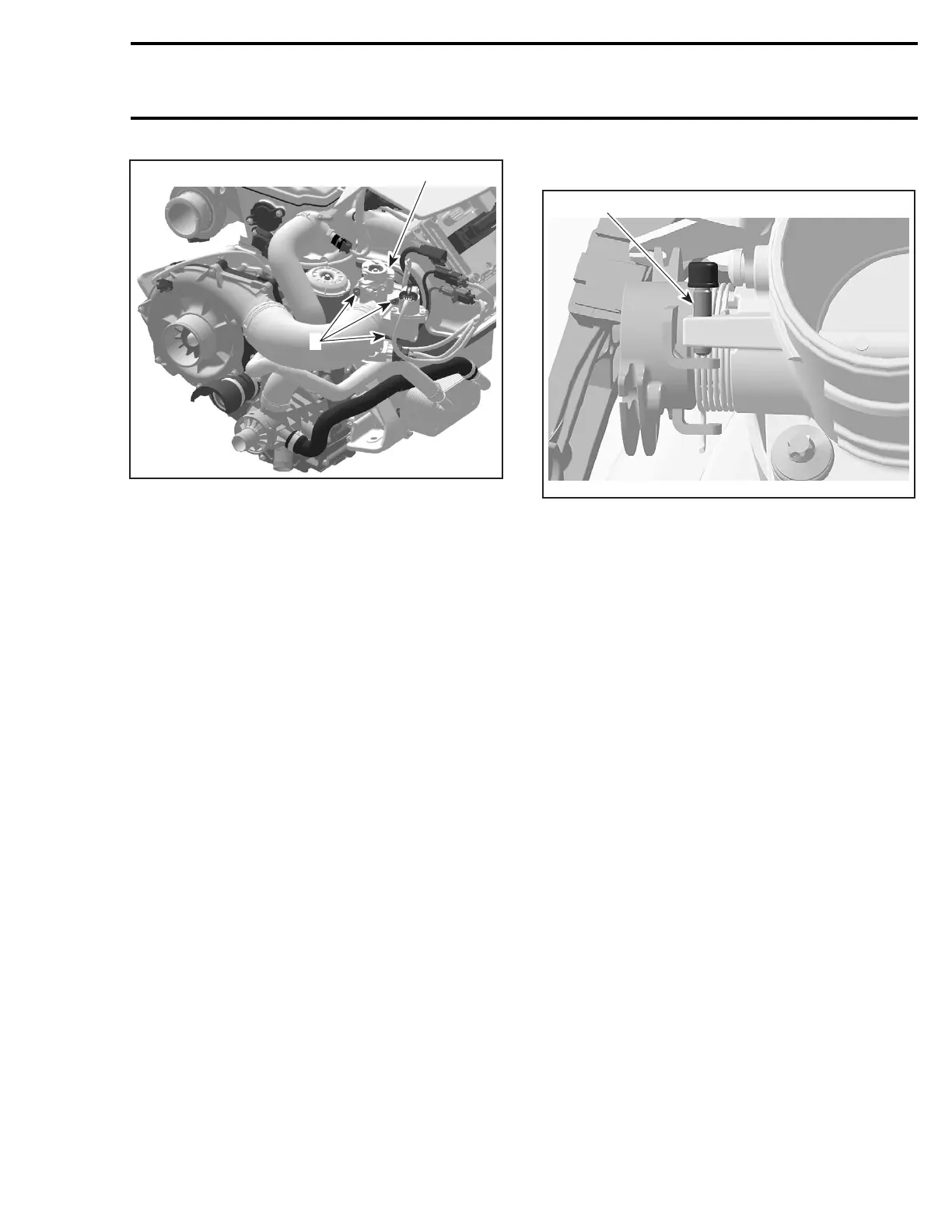

ALL 4-TEC SUPERCHARGED MODELS
1. Throttle body
2. Screws
– Slightly pull throttle body out.
– Disconnect connectors from idle bypass valve,
and TPS.
– Disconnect throttle cable.
Installation
Installation of the new throttle body is the reverse
of the removal procedure.
For TPS and idle bypass valve replacement proce-
dures, refer to the respective paragraph in ELEC-
TRONIC MANAGEMENT below.
Adjustment
1
R1503motr161A
THROTTLE BODY
1. Idle stop screw (do not tamper adjustment)
CAUTION: It is not allowed to perform any
change on the idle stop screw.
The adjustment of the idle stop screw is optimized
by the throttle body manufacturer and locked to
prevent any modification.
CAUTION: Never attempt to adjust the idle
speed through the throttle body tamper proof
screw. If so, it would impair the idle speed
stability. Besides, no adjustment could be
performed by the dealer or the factory to cor-
rect the idle speed. The throttle body would
need to be replaced. Also take into account
that it might change the engine emission level
and the engine might not meet the EPA/CARB
requirements.
CAUTION: Do not alter or tamper with throttle
cable adjustment or routing. It may cause poor
startability and erratic idling.
When the throttle body has been replaced, per-
form throttle cable adjustment (see below) and
then the Closed Throttle and Idle Actuator reset.
Refer to THROTTLE POSITION SENSOR (TPS) in
ELECTRONIC MANAGEMENT below.
Throttle Cable Adjustment
Mechanically adjust the throttle cable.
Lubricate cable with BOMBARDIER LUBE lubri-
cant.
When throttle is released, cable must have a free
play of 0.5 - 4 mm (1/64 - 5/32 in).
smr2004-Complete Line Up 409
