Data Collection and Analysis 779

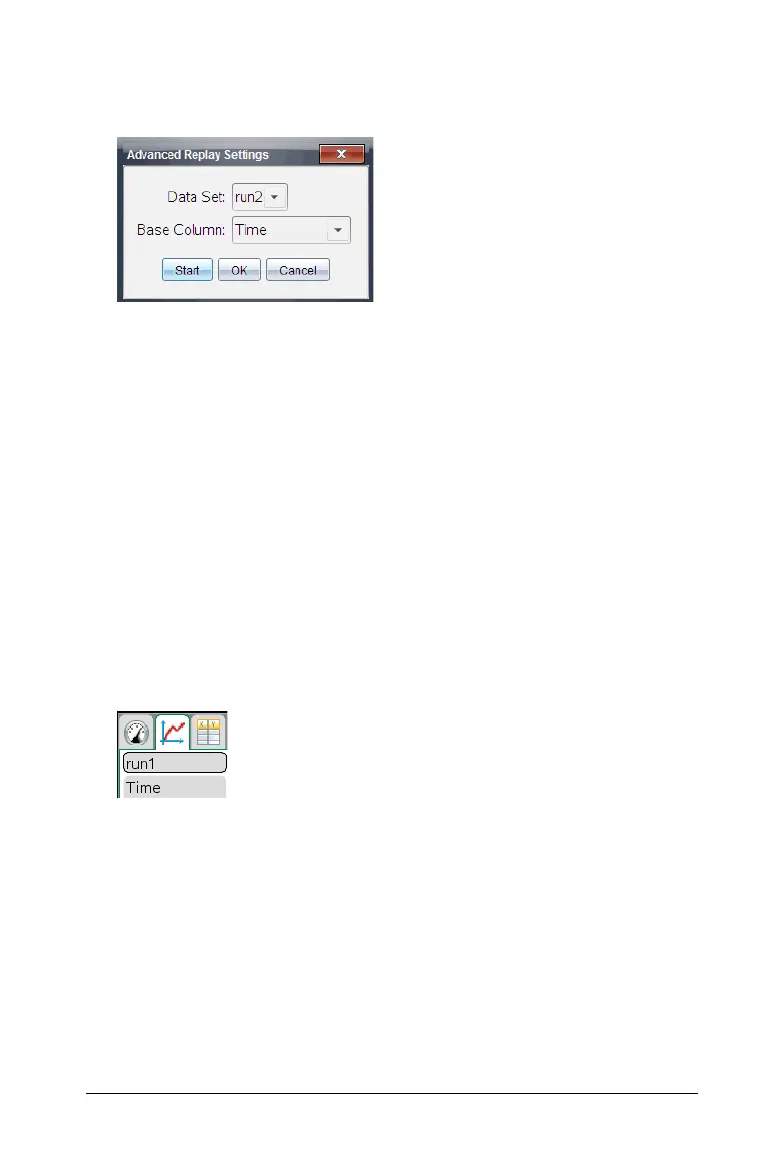

1. Select Experiment > Replay > Advanced Settings.
The Advanced Replay Settings dialog box is opened.
2. Select which data set to replay from the Data Set drop-down menu.
3. (Optional) Select a new value from the Base Column list.
The selected column will act as the “Time” column for the replay.
Note: The base column should be a strictly increasing list of numbers.
4. Select one of the following:
• Click
Start to start the playback and save your settings.
• Click OK to save your settings for use on your next playback.
Note: Data Set and Base Column options are dynamic depending on
number of stored runs and sensor type used.
Note: Changing the run in the Data Set selection tool will not affect
the playback choice. You must specify which data set in
Experiment > Replay > Advanced Settings.
Data Set selection tool:
If you set the replay for run2 and switch to run1, you will not see the
data replayed.
Striking and restoring data
Data that is struck is not deleted and can be restored. Struck data is
temporarily ignored when graphing data or performing computations.
Struck data is shown in the table with a single line through the value. On
the graph, the struck data points are not visible. At least one point must
be selected from a table or graph to strike data.
